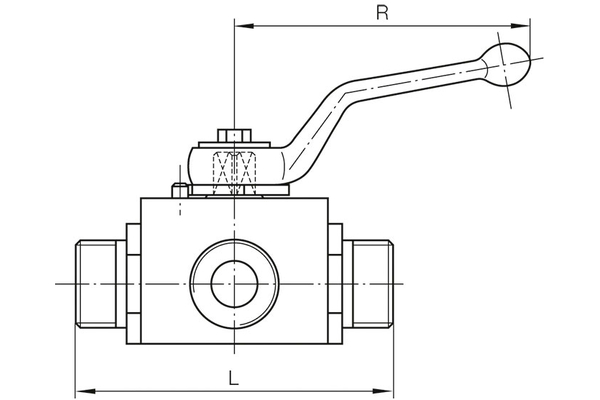

VC-KHU3-15L-12-L
Valcon® Directional ball valve

Product info

• Technical data

  DN:	12
  working pressure [bar]:	315
  Thread + standard:	solderless fittings, DIN 2353, light series, ISO 8434-1
  Thread [GA]:	M22x1,5
  Pipe Ø R [mm]:	15L

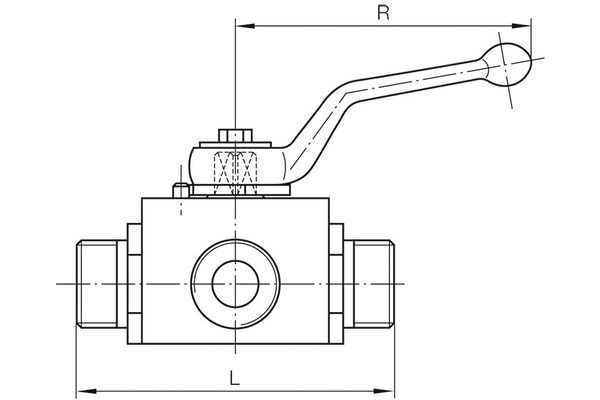

  L [mm]:	82,0
  Lever length [R] [mm]:	108,0
  B [mm]:	35,0
  H [mm]:	40,0

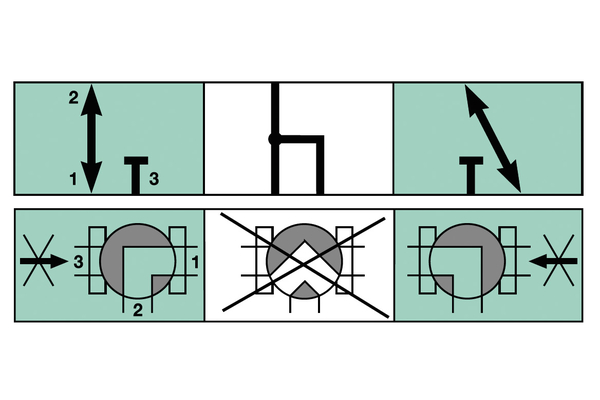

  Bore hole:	L
  Material Casing:	Steel
  Material switching ball sealing:	POM
  Material switching shaft:	steel
  Material switching shaft sealing:	NBR
  Product title short:	Directional ball valve 3/2-ways
