P51MS-1
Electro-hydraulic workshop crimper, 280t, crimping range 6,8-124mm

Product info

• Technical data

  Weight [kg]:	298
  power [kW]:	4
  Components:	German operating instructions, spare parts list, tool for exchanging the single die set segments, lubricant, intermediate die set for die set ype P32, mechanical back stop device
  crimping range [mm]:	6,8 – 124
  crimping force [t]:	280

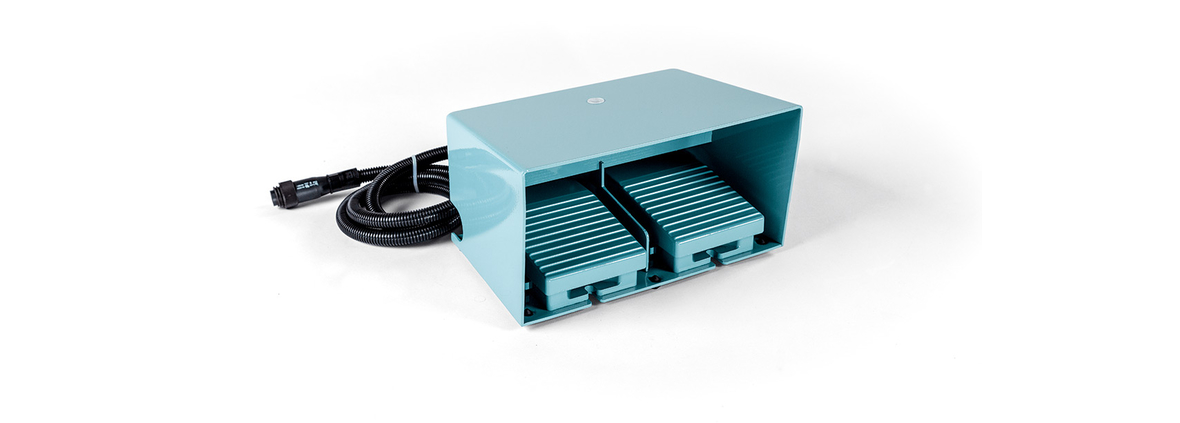

  Note:	The P51MS-1 can optionally be ordered with a double pedal foot switch (part no.: FP-676906): 1 pedal each for closing and opening the crimpinghead. It is not possible to order this foot switch later, as it must be installed at the factory.
  Note on the maximum possible hose qualities/nominal diameters:	Depending on the fittings manufacturer, the crimping forces can vary considerably. Ask your fitting manufacturer about the required crimping forces or have them determined.
  WxDxH [mm]:	865x553x812
  control system:	Micrometer control MS
  frequency [Hz]:	50
  max. hose size [DN]:	4-spiral layers hydraulic hoses up to DN51 / 2", 6-spiral layers hydraulic hoses up to DN38 / 1.1/2"
  max. opening crimping head [mm]:	+46
  number of phases:	3
  tank capacity [ltr]:	ca. 80
