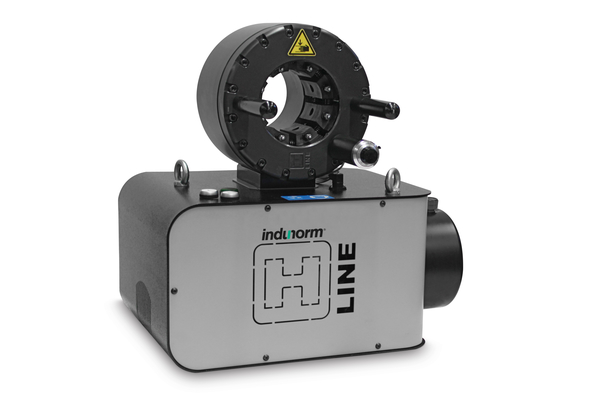

IP24KOMPAKT
Electro-hydraulic service crimper, 140t, crimping range 6,8-61mm

Product info

• Technical data

  Weight [kg]:	95
  power [kW]:	3
  Components:	Operating instructions, spare parts list, tool for exchanging the single die set segments, lubricant
  crimping range [mm]:	6,8 - 61
  crimping force [t]:	140
  Note on the maximum possible hose qualities/nominal diameters:	Depending on the fittings manufacturer, the crimping forces can vary considerably. Ask your fitting manufacturer about the required crimping forces or have them determined.
  WxDxH [mm]:	570x490x560
  control system:	Micrometer control MST
  frequency [Hz]:	50
  max. hose size [DN]:	1-/2-wire braided hydraulic hoses up to DN38 / 1.1/2" 4SP hydraulic hoses up to DN31 / 1.1/4"
  max. opening crimping head [mm]:	+25
  number of phases:	3
  tank capacity [ltr]:	ca. 8
  voltage [V]:	400
