P20HP-1

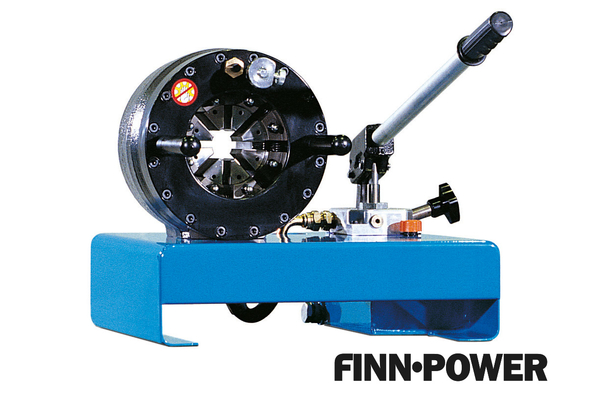

Finn-Power Service crimper with hand pump, 137t, crimping range 6,8-61mm

Art. No.: P20HP-1

List number: 35103070

Increased precision does not necessarily mean that it cannot be used in a mobile fashion. The manually-operated hose press is equipped with a mechanical fine adjustment system and thus also ensures secure clamping on-site. The integrated hand pump allows mobile use without a power supply.

To accessories

Product info
Benefit

Product info

Technical data

Weight [kg]:	66
Components:	German operating instructions, spare parts list, tool for exchanging the single die set segments, lubricant, oil filling
crimping range [mm]:	6,8 – 61
crimping force [t]:	137
Note:	The P20HP is also available with a manual MS control (micrometer) including visual signal when the crimping dimension is reached, part no.: P20HPL
Note on the maximum possible hose qualities/nominal diameters:	Depending on the fittings manufacturer, the crimping forces can vary considerably. Ask your fitting manufacturer about the required crimping forces or have them determined.
WxDxH [mm]:	487x441x389
control system:	Manual (scale bolt with setting ring)
crimping power 4SP-hose:	DN31
crimping power braided hose:	DN38
max. hose size [DN]:	1-/2-wire braided hydraulic hoses up to DN38 / 1.1/2", hydraulic hoses 4SP up to DN31 / 1.1/4"
max. opening crimping head [mm]:	+25
tank capacity [ltr]:	ca. 4
