HSP1A-H/V

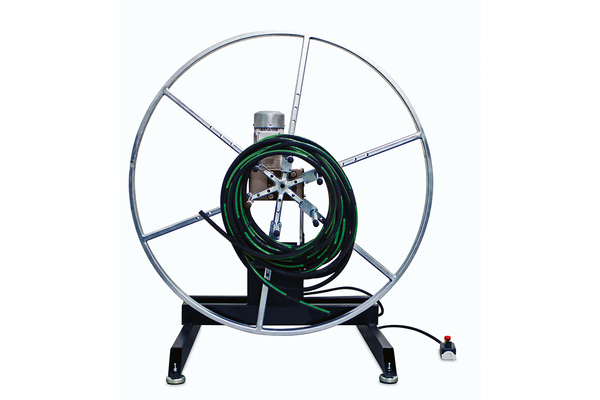

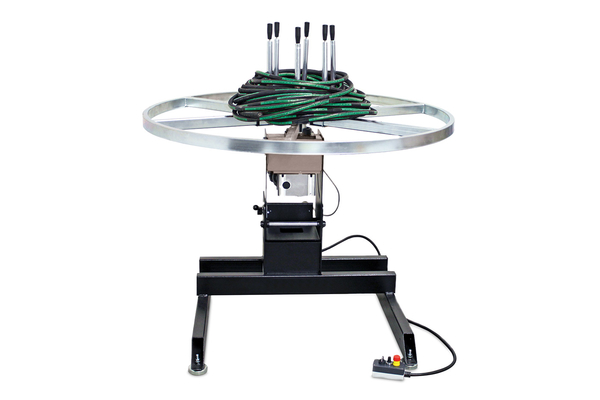

Hose reel HSP1A-H/V, electrically driven - horizontal / vertical applicable

Product info

• Technical data

  Dimensions [mm]:	1410x1410x1040
  Weight [kg]:	120
  power [kW]:	0,55
  Components:	user manual, foot pedal
  suitable for hose:	to DN76 / 3"
  Max. Load per reel disc [kg]:	400 (V) / 800 (H)
  Note:	Alternatively also available with reel Ø 1210mm or 1610mm and in a manual version without electric drive
  Rounds per minute [U/min]:	0 - 28
  frequency [Hz]:	50
  max. height of hose reel [mm]:	500
  max. outer diameter hose reel [mm]:	1410 (= reel Ø)
  number of phases:	1
  voltage [V]:	230
