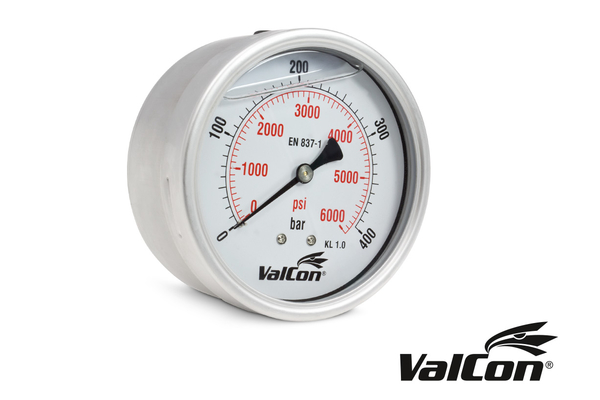

Valcon® pressure gauge NG100, connection: lower back

Similar image
Similar image

Pressure gauges NG100 double scale bar/psi according to EN 837-1

To accessories

Detail

Art. No.
VC-MANO100PH-10
%
SALE
VC-MANO100PH-16
%
SALE
VC-MANO100PH-25
%
SALE
VC-MANO100PH-40
%
SALE
VC-MANO100PH-60
%
SALE
VC-MANO100PH-100
%
SALE
VC-MANO100PH-160
%
SALE
VC-MANO100PH-250
%
SALE
VC-MANO100PH-400
%
SALE
VC-MANO100PH-600
%
SALE
VC-MANO100PH-BH
%
SALE
VC-MANO100PH-BF
%
SALE
Thread [GA]
1/2" AG
1/2" AG
1/2" AG
1/2" AG
1/2" AG
1/2" AG
1/2" AG
1/2" AG
1/2" AG
1/2" AG
Pressure load [bar]
Resting load: 3/4 x full scale value Alternating load: 2/3 x full scale value Short-time: 1 x full scale value
Resting load: 3/4 x full scale value Alternating load: 2/3 x full scale value Short-time: 1 x full scale value
Resting load: 3/4 x full scale value Alternating load: 2/3 x full scale value Short-time: 1 x full scale value
Resting load: 3/4 x full scale value Alternating load: 2/3 x full scale value Short-time: 1 x full scale value
Resting load: 3/4 x full scale value Alternating load: 2/3 x full scale value Short-time: 1 x full scale value
Resting load: 3/4 x full scale value Alternating load: 2/3 x full scale value Short-time: 1 x full scale value
Resting load: 3/4 x full scale value Alternating load: 2/3 x full scale value Short-time: 1 x full scale value
Resting load: 3/4 x full scale value Alternating load: 2/3 x full scale value Short-time: 1 x full scale value
Resting load: 3/4 x full scale value Alternating load: 2/3 x full scale value Short-time: 1 x full scale value
Resting load: 3/4 x full scale value Alternating load: 2/3 x full scale value Short-time: 1 x full scale value
Nominal size
100
100
100
100
100
100
100
100
100
100
Ø-casing front side [d1] [mm]
100
100
100
100
100
100
100
100
100
100
Scaling
bar/psi
bar/psi
bar/psi
bar/psi
bar/psi
bar/psi
bar/psi
bar/psi
bar/psi
bar/psi
t [mm]
50
50
50
50
50
50
50
50
50
50
Ø-casing backside [d2] [mm]
98
98
98
98
98
98
98
98
98
98
T [mm]
84
84
84
84
84
84
84
84
84
84
Quantity


Product info

  • Technical data
    Description: ValCon® Manometer
    Filling liquid [ltr]: Glycerin 99,7%
    Material Casing: stainless steel
    Material connection: Brass
    Material dial: Aluminum white, scale bar in black, psi in red, with stop pin
    Material glass: Safety glas
    Material movement: Copper alloy
    Material pointer: Aluminum, black
    Process connection: lower back
    Temperature range [°C]: -20°C to +60°C
    Temperature range ambient [°C]: -20°C to +80°C
    accuracy class: 1,0
    display area [bar]: 0 – 250
    material measuring element: Copper alloy, screw shape
    protection class: IP65 according to EN60529 / IEC 529

Benefit

easy assembling of manometers
