Überwurfmutter für MT-PN2

Detail

Art. No.
RV06M-LL
%
SALE
RV06M-L
%
SALE
RV06M-S
%
SALE
working pressure [bar]
100
315
630
burst pressure [bar]
400
1260
2520
Pipe Ø R [mm]
6
6
6
Thread [G1]
M10x1
M12x1,5
M14x1,5
Series
LL
L
S
SW1 [mm]
12
14
17
Quantity


Product info

  • Technical data
    Connection type 1: Metric
    Construction form: individual parts

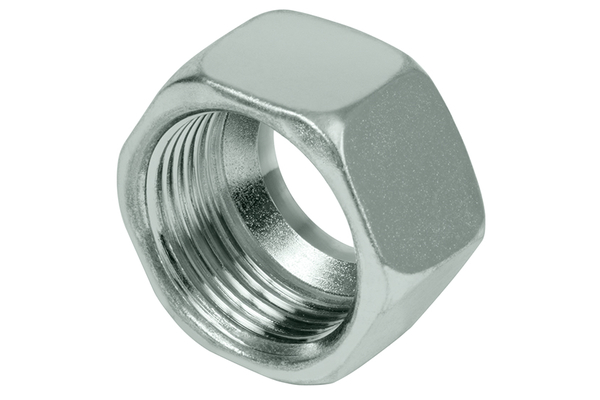

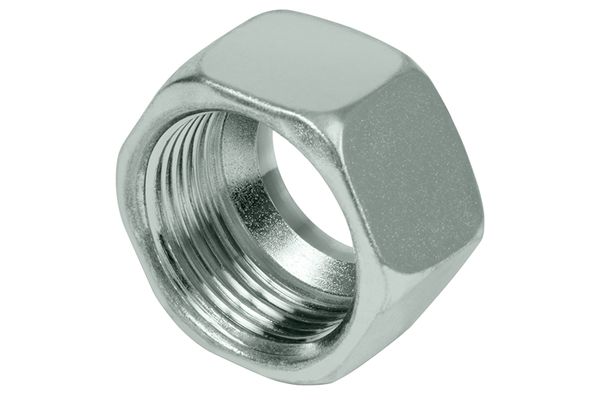

    Description: Union nut
    Material: ST-l
    Resistance against red rust [h]: 1000
    Resistance against white rust [h]: 500
    Surface: zinc plated, chrom 6-free

Accessories

The cutting ring preassembly should be done with our hardened preassembled union - RV..VM L / S.
