RS-C5G34
Pipe clamps, standard series

Product info

• Technical data

  Color:	green
  DIN:	DIN 3015-1
  Series:	C5

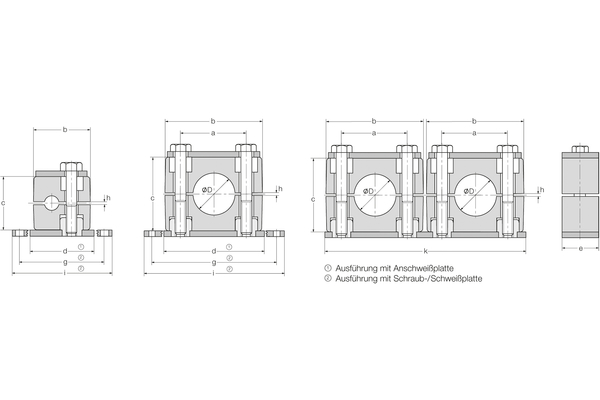

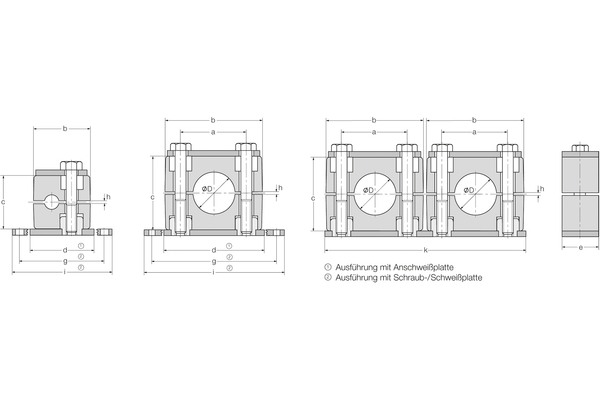

  Ø D metric [mm]:	26,9
  Nominal pipe-Ø inches:	3/4
  Width b [mm]:	59
  Height c [mm]:	42
  Depth e [mm]:	30
  Material:	Polypropylene
  Product title long:	Basic material for pipe clamps
  clamp half clearance [mm]:	0.6
