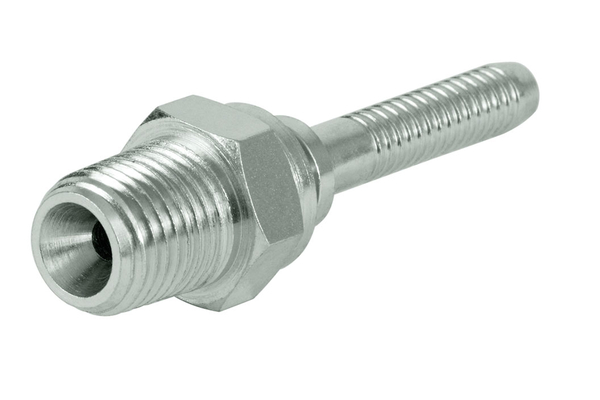

XJ04NM02
AGN NM

Product info

• Technical data

  DN:	04
  Size:	02
  Inch:	1/8
  Thread + standard:	Threaded adapter with conical NPTF thread
  Connection thread A:	1/4"-18 NPTF

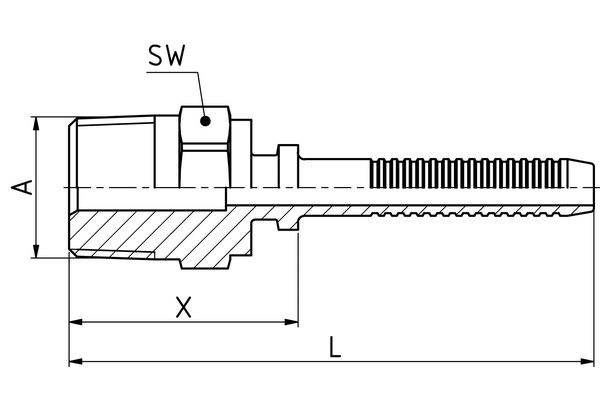

  X [mm]:	30,0
  L1 [mm]:	58,6
  SW1 [mm]:	17
  Connection name Indunorm:	NM
  Connection type:	AGN
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	galvanised and Cr III passivated
  Type of fittings:	700 bar hydraulic tool series XJ
