XJ06NM06
AGN NM

Product info

• Technical data

  DN:	10
  Size:	06
  Inch:	38
  Thread + standard:	Threaded adapter with conical NPTF thread
  Connection thread A:	3/8"-18 NPTF

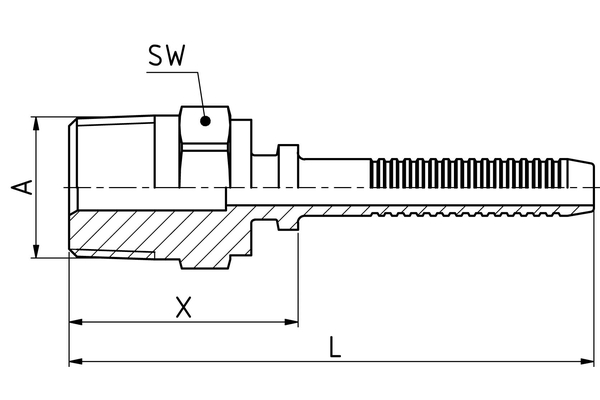

  X [mm]:	29,9
  L1 [mm]:	70,3
  SW1 [mm]:	19
  Connection name Indunorm:	NM
  Connection type:	AGN
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	galvanised and Cr III passivated
  Type of fittings:	700 bar hydraulic tool series XJ
