XJ04BF04
DKR BF

Product info

• Technical data

  DN:	06
  Size:	04
  Inch:	1/4
  Thread + standard:	BSP sealing head, 60 ° cone with union nut, BSP thread
  Connection thread A:	G1/4"

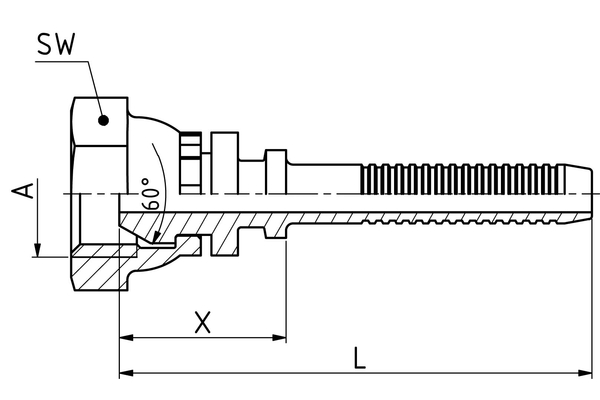

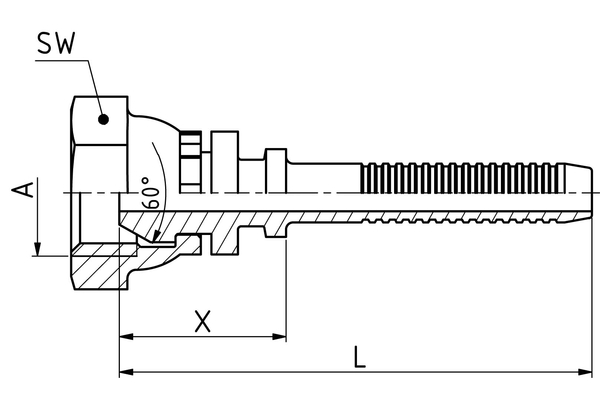

  X [mm]:	19,2
  L1 [mm]:	54,0
  SW1 [mm]:	19
  Connection name Indunorm:	BF
  Connection type:	DKR
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	galvanised and Cr III passivated
  Type of fittings:	700 bar hydraulic tool series XJ
