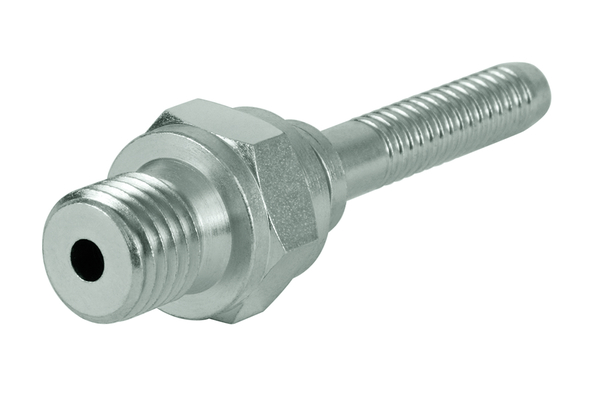

XJ12MMW04
MMW

Product info

• Technical data

  DN:	06
  Size:	04
  Inch:	1/4
  Thread + standard:	Threaded adapter with metric external thread sealing edge DIN 3852-A

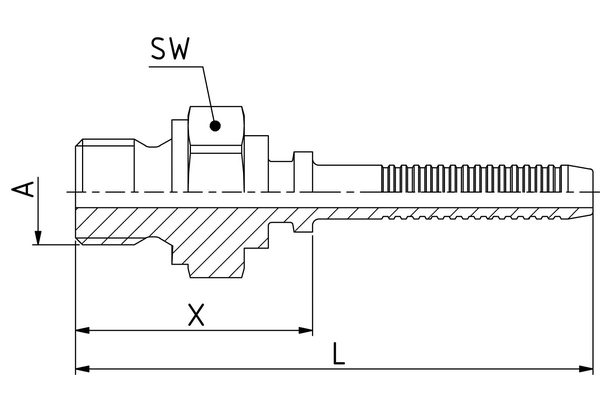

  Connection thread A:	M12x1,5
  X [mm]:	29,3
  L1 [mm]:	64,1
  SW1 [mm]:	17
  Connection name Indunorm:	MMW
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	galvanised and Cr III passivated
  Type of fittings:	700 bar hydraulic tool series XJ
