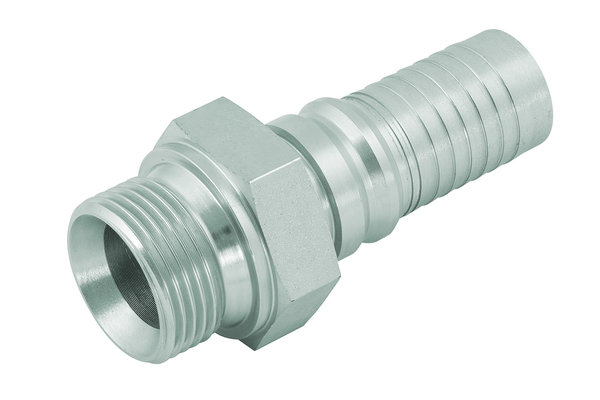

HAI24BM24
AGR BM

Product info

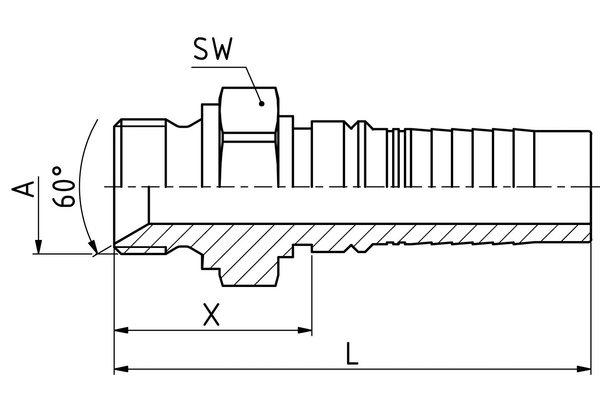

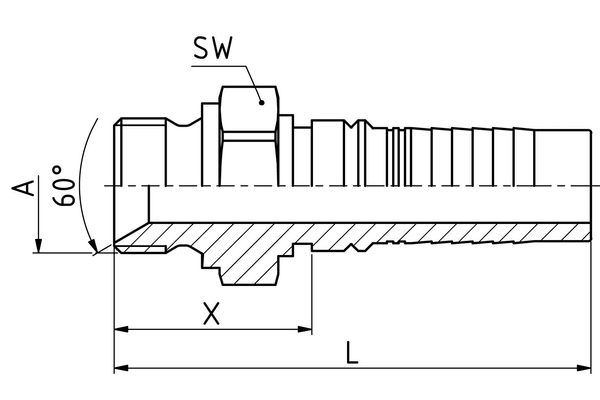

• Technical data

  DN:	38
  Thread + standard:	BSP-threaded adapter, 60°-cone with BSP male thread
  Connection thread A:	1.1/2-11
  X [mm]:	48,5
  SW1 [mm]:	55
  Connection name Indunorm:	BM
  Connection type:	AGR
  Construction form:	0°
  Material:	Free cutting steel
  Type of fittings:	Multispiral series HAI
