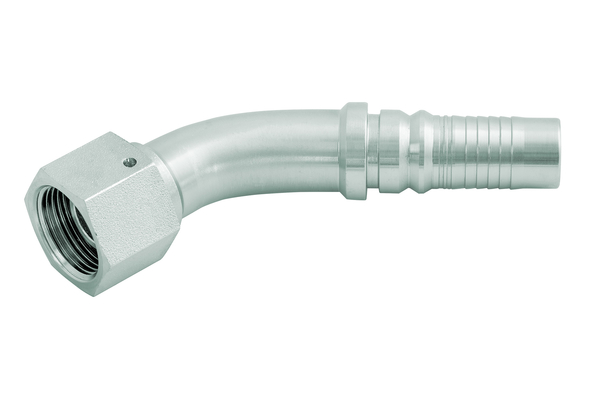

DKOR 45° (HAI)

Similar image
Similar image

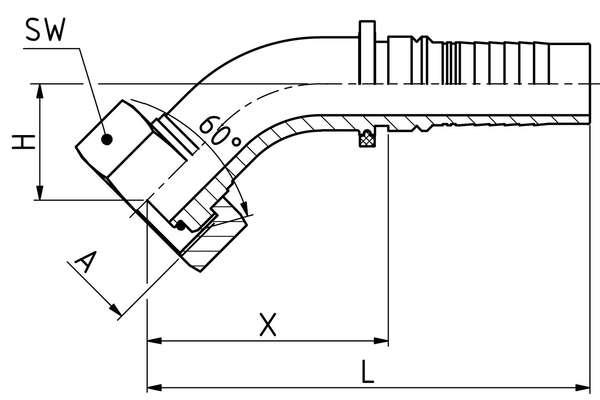

BSP sealing head, 60 ° cone with o-ring and union nut, BSP thread

To accessories

Detail

Art. No.
HAI12BOF45S12
%
SALE
HAI16BOF45S16
%
SALE
HAI20BOF45S20
%
SALE
HAI24BOF45S24
%
SALE
HAI32BOF45S32
%
SALE
DN
19
25
31
38
51
Thread + standard
BSP sealing head, 60 ° cone with o-ring and union nut, BSP thread
BSP sealing head, 60 ° cone with o-ring and union nut, BSP thread
BSP sealing head, 60 ° cone with o-ring and union nut, BSP thread
BSP sealing head, 60 ° cone with o-ring and union nut, BSP thread
BSP sealing head, 60 ° cone with o-ring and union nut, BSP thread
Connection thread A
G3/4"-14
G 1"
1.1/4-11
1.1/2-11
G2"-11
X [mm]
72,0
81,0
97,0
113,0
167,0
H [mm]
30,0
28,0
35,0
47,5
SW1 [mm]
32
38
50
55
70
Quantity


Product info

  • Technical data
    Connection name Indunorm: BOF 45°
    Connection type: DKOR 45°
    Construction form: 45°
    Material: Free cutting steel, O-Ring: NBR
    Type of fittings: Multispiral series HAI 45°
