DKOS (HAI)

Similar image
Similar image

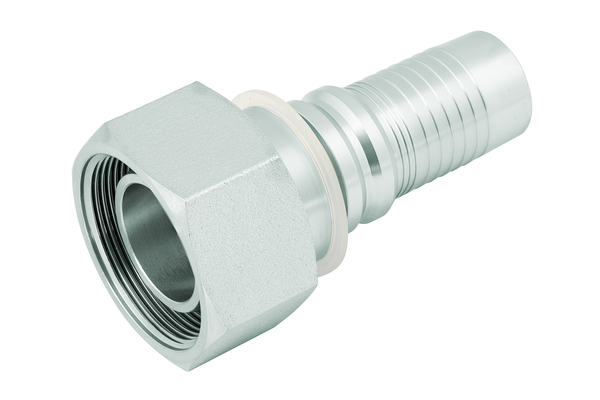

Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series

To accessories

Detail

Art. No.
HAI24MSOF16-10
%
SALE
HAI24MSOF16-12
%
SALE
HAI30MSOF20-12
%
SALE
HAI36MSOF25-16
%
SALE
HAI42MSOF30-20
%
SALE
HAI52MSOF38-24
%
SALE
HAI30MSOF20-10
%
SALE
HAI36MSOF25-10
%
SALE
HAI36MSOF25-12SW46
%
SALE
HAI42MSOF30-12
%
SALE
HAI42MSOF30-16
%
SALE
HAI52MSOF38-20
%
SALE
HAI36MSOF25-12SW41
%
SALE
DN
16
19
19
25
31
38
16
16
19
19
25
31
19
Thread + standard
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Connection thread A
M24x1,5
M24x1,5
M30X2
M36X2
M42X2
M52X2
M30X2
M36x2
M36X2
M42x2
M42X2
M52X2
M36x2
X [mm]
30,8
23,9
37,5
38,8
43,2
50,8
34,4
37,5
37,6
40,2
40,7
45,3
37,9
SW1 [mm]
30
30
36
46
50
60
36
46
46
50
50
60
41
Quantity


Product info

  • Technical data
    Connection name Indunorm: MSOF
    Connection type: DKOS
    Construction form: 0°
    Material: Free cutting steel, O-Ring: NBR
    Type of fittings: Multispiral series HAI

Practical tip

For a easy nipple assembly with little effort our nipple assembly tool is recommended. Article number: NEV6-50H-2
