Art. No.: HAI16SFH6-45S12
List number: 03460220

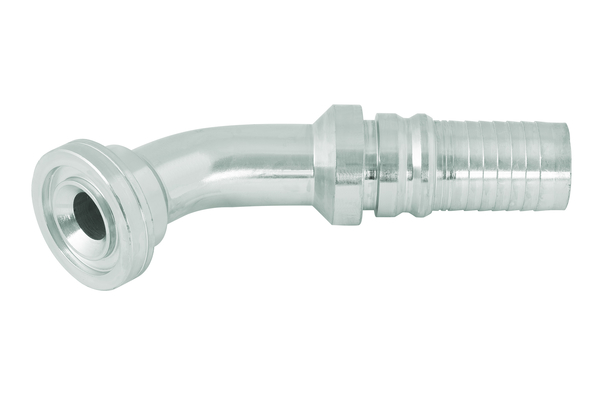

Flange head SAE J518 (ISO 6162) high pressure series 6.000 PSI
| DN: | 19 |
| Thread + standard: | Flange head SAE J518 (ISO 6162) high pressure series 6000 PSI |
| Connection thread A: | 1 |

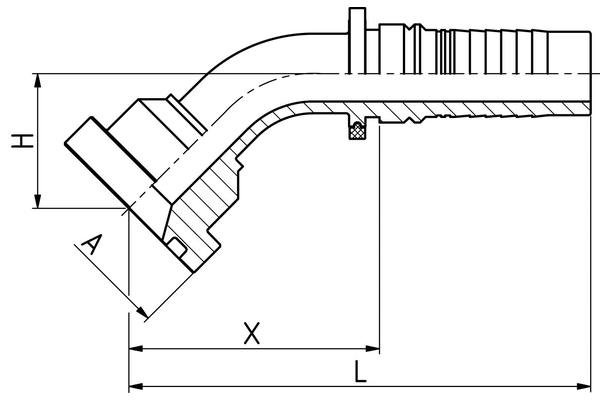

| X [mm]: | 76,8 |
| H [mm]: | 33,0 |
| Connection name Indunorm: | SFH 6 45° |
| Connection type: | SFS 6.000 PSI 45° |
| Construction form: | 45° |
| Material: | Free cutting steel |
| Type of fittings: | Multispiral series HAI |
Reserve technical changes.
