Art. No.: HAI32SFH6-45S24
List number: 03460330

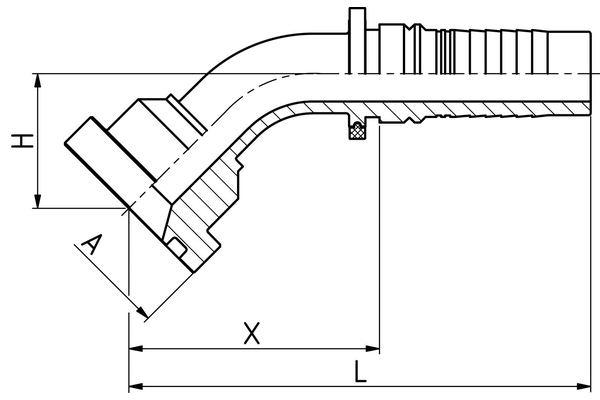

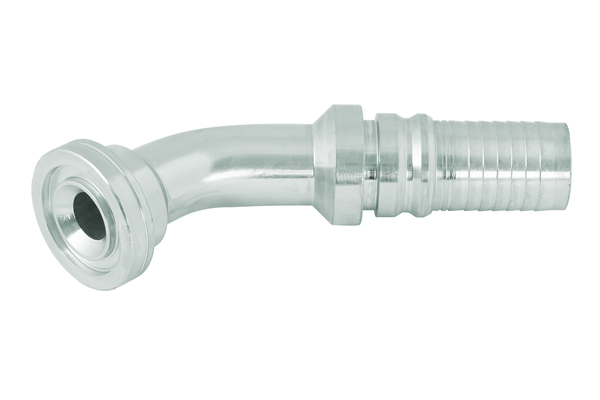

Flange head SAE J518 (ISO 6162) high pressure series 6.000 PSI
| DN: | 38 |
| Thread + standard: | Flange head SAE J518 (ISO 6162) high pressure series 6000 PSI |
| Connection thread A: | 2 |
| X [mm]: | 129,1 |
| H [mm]: | 55,0 |
| Connection name Indunorm: | SFH 6 45° |
| Connection type: | SFS 6.000 PSI 45° |
| Construction form: | 45° |
| Material: | Free cutting steel |
| Type of fittings: | Multispiral series HAI |
Reserve technical changes.
