Art. No.: HAI17JF45S12
List number: 03410080

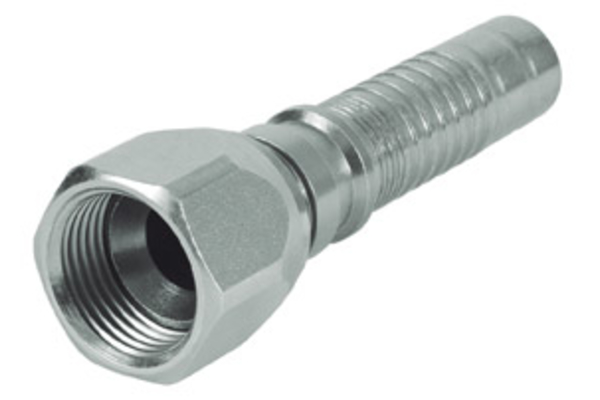

JIC threaded adapter, 74 ° cone with UN / UNF thread

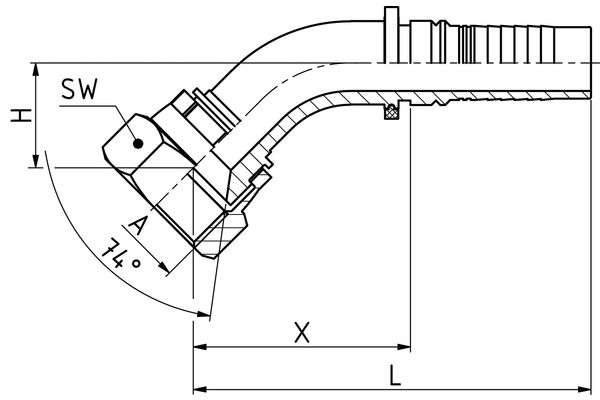

| DN: | 19 |
| Thread + standard: | JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread |
| Connection thread A: | 1.1/16"-12 |
| X [mm]: | 66,0 |
| H [mm]: | 27,5 |
| SW1 [mm]: | 32 |
| Connection name Indunorm: | JF 45° |
| Connection type: | DKJ 45° |
| Construction form: | 45° |
| Material: | Free cutting steel |
| Type of fittings: | Multispiral series HAI 45° |
Reserve technical changes.
