Art. No.: HAI26JF45S20
List number: 03410110

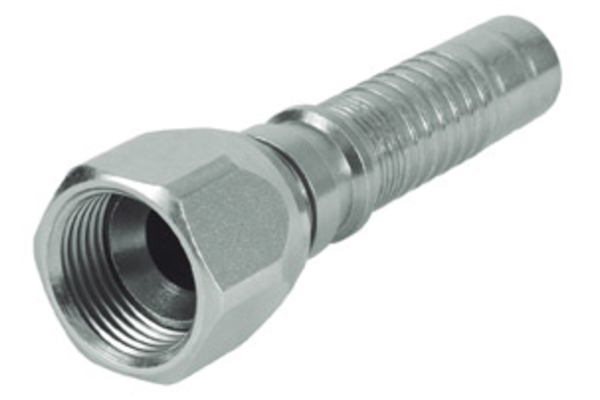

JIC threaded adapter, 74 ° cone with UN / UNF thread

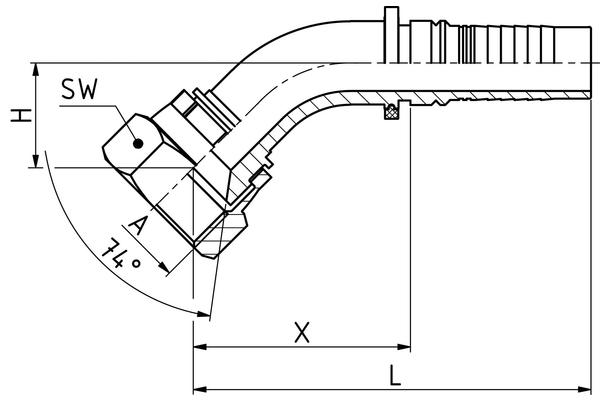

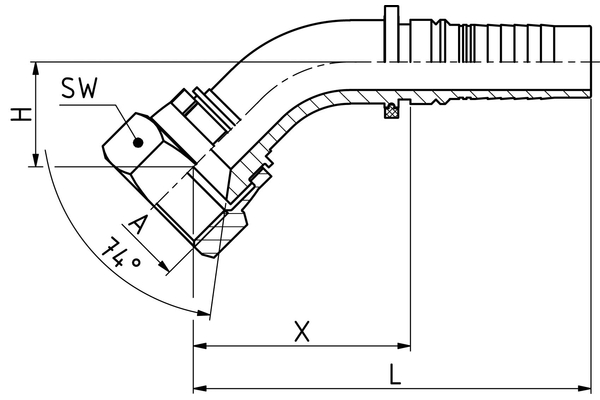

| DN: | 31 |
| Thread + standard: | JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread |
| Connection thread A: | 1.5/8"-12 |
| X [mm]: | 93,0 |
| H [mm]: | 37,0 |
| SW1 [mm]: | 50 |
| Connection name Indunorm: | JF 45° |
| Connection type: | DKJ 45° |
| Construction form: | 45° |
| Material: | Free cutting steel |
| Type of fittings: | Multispiral series HAI 45° |
Reserve technical changes.
