Art. No.: HAI21JF90S16
List number: 03410220

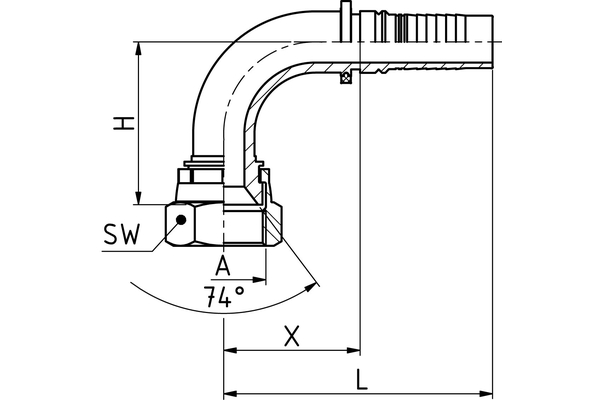

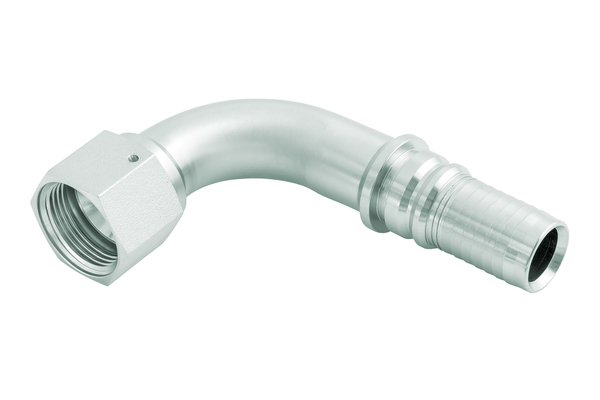

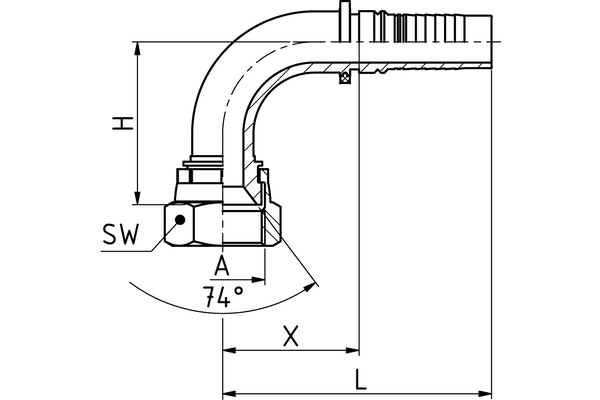

JIC threaded adapter, 74 ° cone with UN / UNF thread
| DN: | 25 |
| Thread + standard: | JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread |
| Connection thread A: | 1.5/16"-12 |
| X [mm]: | 71,0 |
| H [mm]: | 67,0 |
| SW1 [mm]: | 38 |
| Connection name Indunorm: | JF 90° |
| Connection type: | DKJ 90° |
| Construction form: | 90° |
| Material: | Free cutting steel |
| Type of fittings: | Multispiral series HAI 90° |
Reserve technical changes.
