DKJ 90° (HAI)

Similar image
Similar image

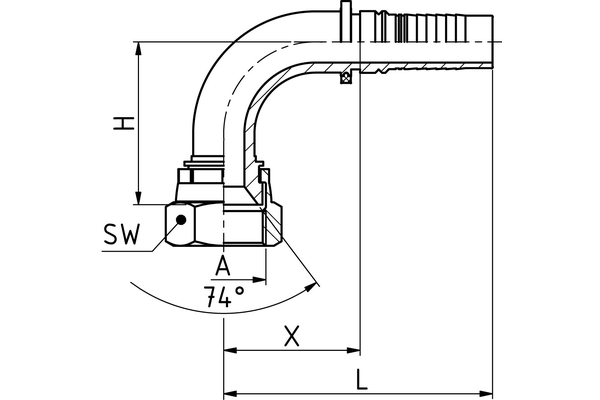

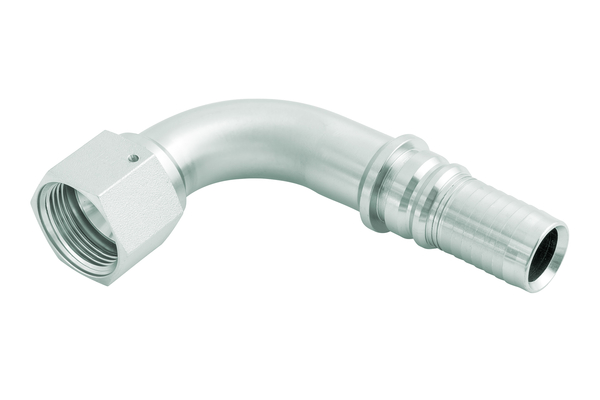

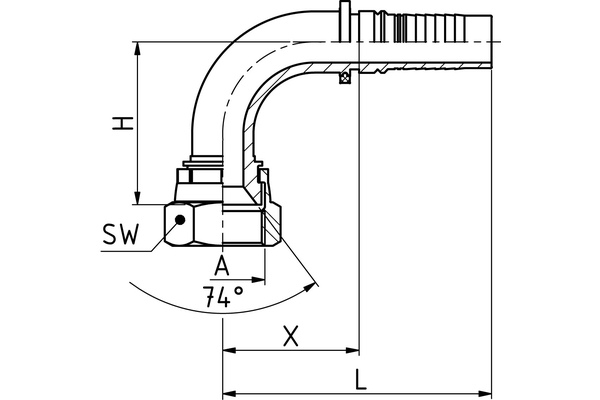

JIC threaded adapter, 74 ° cone with UN / UNF thread

To accessories

Detail

Art. No.
HAI17JF90S12
%
SALE
HAI21JF90S16
%
SALE
HAI26JF90S20
%
SALE
HAI30JF90S24
%
SALE
DN
19
25
31
38
Thread + standard
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
Connection thread A
1.1/16"-12
1.5/16"-12
1.5/8"-12
1.7/8"-12
X [mm]
45,0
71,0
79,2
94,5
H [mm]
57,0
67,0
78,0
92,0
SW1 [mm]
32
38
50
55
Quantity


Product info

  • Technical data
    Connection name Indunorm: JF 90°
    Connection type: DKJ 90°
    Construction form: 90°
    Material: Free cutting steel
    Type of fittings: Multispiral series HAI 90°
