Art. No.: HAI30JF90S24
List number: 03410240

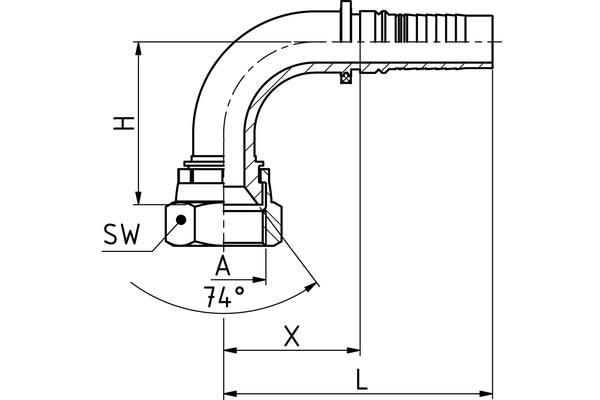

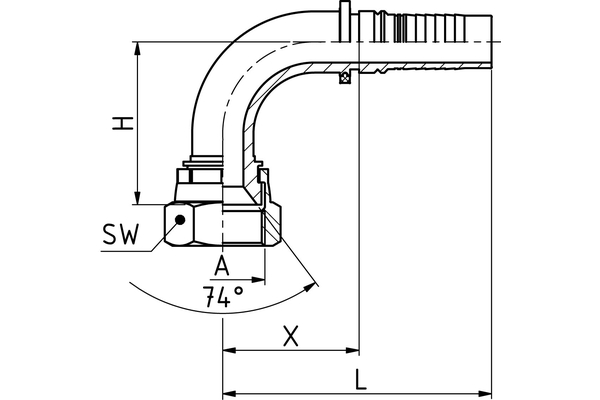

JIC threaded adapter, 74 ° cone with UN / UNF thread
| DN: | 38 |
| Thread + standard: | JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread |
| Connection thread A: | 1.7/8"-12 |
| X [mm]: | 94,5 |
| H [mm]: | 92,0 |
| SW1 [mm]: | 55 |
| Connection name Indunorm: | JF 90° |
| Connection type: | DKJ 90° |
| Construction form: | 90° |
| Material: | Free cutting steel |
| Type of fittings: | Multispiral series HAI 90° |
Reserve technical changes.
