HAN16BOF90S16
DKOR 90° BOF 90°

Product info

• Technical data

  DN:	25
  Size:	16
  Inch:	1
  Thread + standard:	BSP sealing head, 60 ° cone with o-ring and union nut, BSP thread
  Connection thread A:	1-11

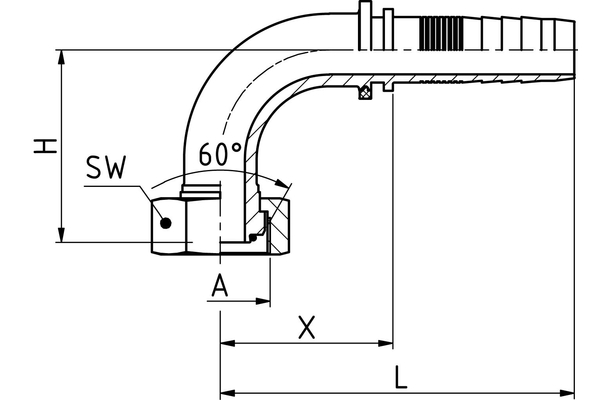

  X [mm]:	73,7
  L1 [mm]:	138,0
  H [mm]:	71,0
  L [mm]:	138,0
  SW1 [mm]:	38
  Type of nut:	Union nut
  Connection name Indunorm:	BOF 90°
  Connection type:	DKOR 90°
  Construction form:	90°
  Material:	Free cutting sT-l
  Material:	Free cutting sT-l

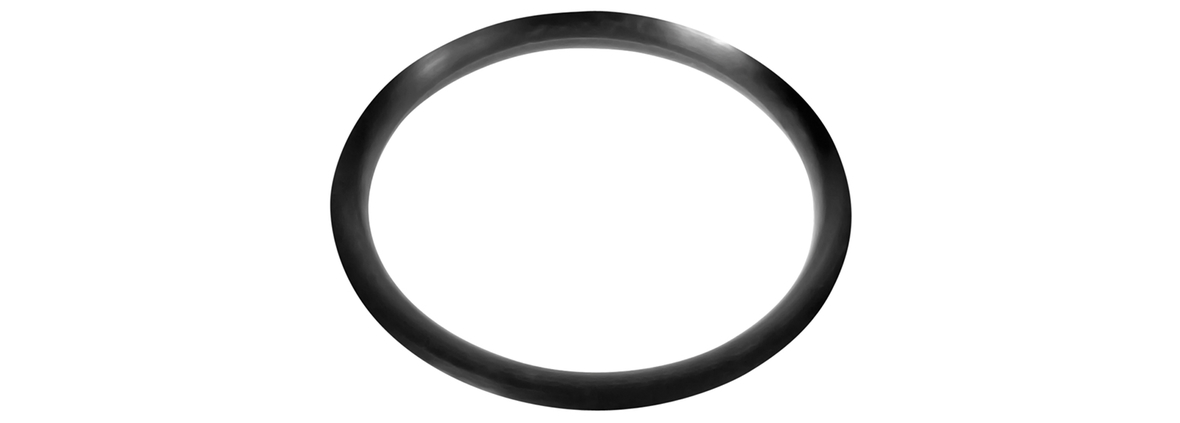

  Material O-Ring:	NBR
  Surface:	Cr3
  Type of fittings:	Multi spiral program HAN fittings (no skive)
