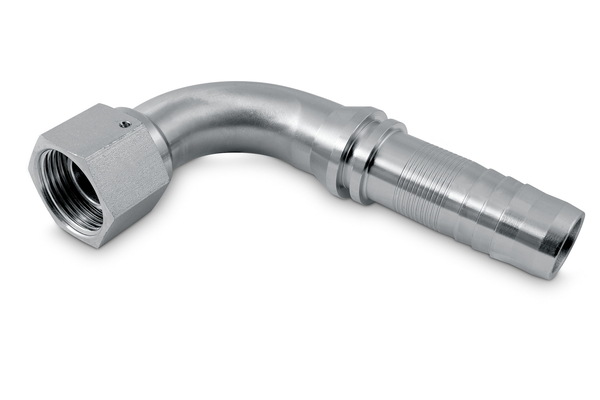

DKOR 90° (HAN)

Similar image
Similar image

BSP sealing head, 60 ° cone with o-ring and union nut, BSP thread

To accessories

Detail

Art. No.
HAN12BOF90S12
%
SALE
HAN16BOF90S16
%
SALE
HAN20BOF90S20
%
SALE
DN
19
25
32
Size
12
16
20
Inch
3/4
1
1.1/4
Thread + standard
BSP sealing head, 60 ° cone with o-ring and union nut, BSP thread
BSP sealing head, 60 ° cone with o-ring and union nut, BSP thread
BSP sealing head, 60 ° cone with o-ring and union nut, BSP thread
Connection thread A
3/4-14
1-11
1 1/4-11
X [mm]
59,1
73,7
84,3
L1 [mm]
114,0
138,0
180,0
H [mm]
61,0
71,0
83,0
L [mm]
114,0
138,0
SW1 [mm]
32
38
50
Type of nut
Union nut
Union nut
Union nut
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: BOF 90°
    Connection type: DKOR 90°
    Construction form: 90°
    Material: Free cutting sT-l
    Material: Free cutting sT-l
    Material O-Ring: NBR
    Surface: Cr3
    Type of fittings: Multi spiral program HAN fittings (no skive)

Benefit

The ISOFLEX6000 hose does not have to be peeled!
