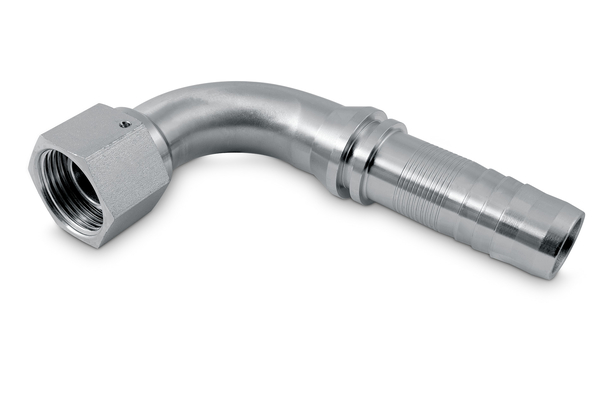

HAN20BOF90S20
DKOR 90° BOF 90°

Product info

• Technical data

  DN:	32
  Size:	20
  Inch:	1.1/4
  Thread + standard:	BSP sealing head, 60 ° cone with o-ring and union nut, BSP thread
  Connection thread A:	1 1/4-11

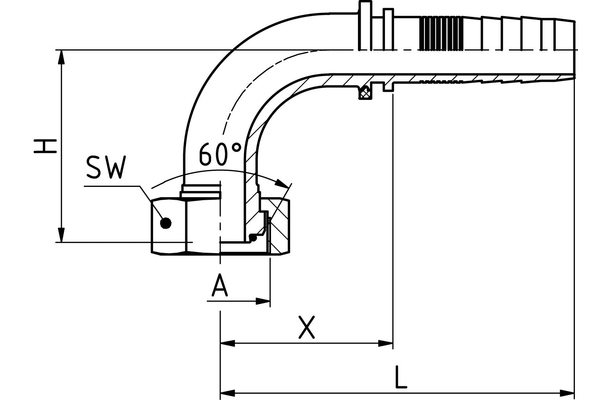

  X [mm]:	84,3
  L1 [mm]:	180,0
  H [mm]:	83,0
  SW1 [mm]:	50
  Type of nut:	Union nut
  Connection name Indunorm:	BOF 90°
  Connection type:	DKOR 90°
  Construction form:	90°
  Material:	Free cutting sT-l
  Material:	Free cutting sT-l
  Material O-Ring:	NBR
  Surface:	Cr3
  Type of fittings:	Multi spiral program HAN fittings (no skive)
