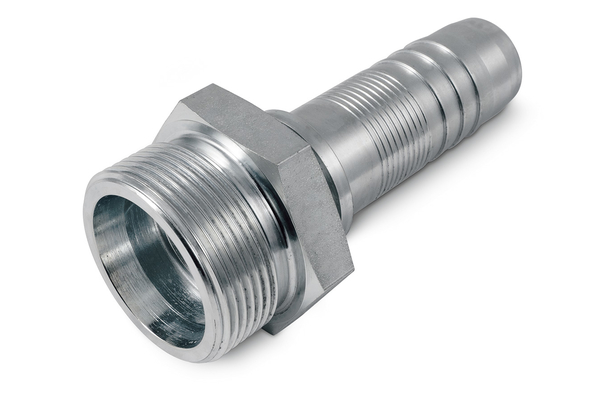

HAN52ME38-20
CES ME

Product info

• Technical data

  DN:	32
  Size:	20
  Inch:	1.1/4
  Thread + standard:	Threaded stem with bore form W (24 °) according to DIN 3861, heavy series
  Connection thread A:	M52x2
  Pipe Ø R [mm]:	38
  X [mm]:	51,0
  L1 [mm]:	146,5
  SW1 [mm]:	55
  Connection name Indunorm:	ME
  Connection type:	CES
  Construction form:	0°
  Material:	Free cutting sT-l
  Material:	Free cutting sT-l
  Surface:	Cr3
  Type of fittings:	Multi spiral program HAN fittings (no skive)
