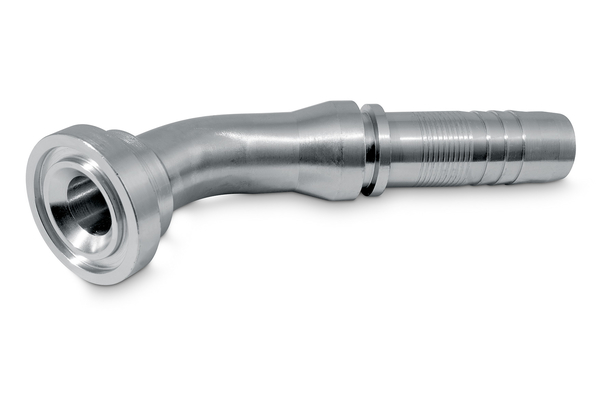

SFS 6000 PSI 45° (HAN)

Detail

DN
19
19
25
25
25
32
32
32
Size
12
12
16
16
16
20
20
20
Inch
3/4
3/4
1
1
1
1.1/4
1.1/4
1.1/4
Thread + standard
Flange head SAE J518 (ISO 6162) high pressure series 6.000 PSI
Flange head SAE J518 (ISO 6162) high pressure series 6.000 PSI
Flange head SAE J518 (ISO 6162) high pressure series 6.000 PSI
Flange head SAE J518 (ISO 6162) high pressure series 6.000 PSI
Flange head SAE J518 (ISO 6162) high pressure series 6.000 PSI
Flange head SAE J518 (ISO 6162) high pressure series 6.000 PSI
Flange head SAE J518 (ISO 6162) high pressure series 6.000 PSI
Flange head SAE J518 (ISO 6162) high pressure series 6.000 PSI
Flange size D2
3/4
1
3/4
1
1.1/4
1
1.1/4
1.1/2
X [mm]
62,8
65,4
77,0
82,9
78,0
104,7
103,0
117,0
L1 [mm]
130,0
135,0
141,0
162,0
160,0
193,0
199,0
213,0
H [mm]
30,0
33,0
29,5
38,5
44,0
34,5
41,0
48,0
L [mm]
130,0
141,0
D2 [mm]
41,3
47,6
41,3
47,6
54,0
47,6
54,0
63,5
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: SFH 6 - 45°
    Connection type: SFS 6.000 PSI 45°
    Construction form: 45°
    Material: Free cutting sT-l
    Material: Free cutting sT-l
    Surface: Cr3
    Type of fittings: Multi spiral program HAN fittings (no skive)

Benefit

The ISOFLEX6000 hose does not have to be peeled!
