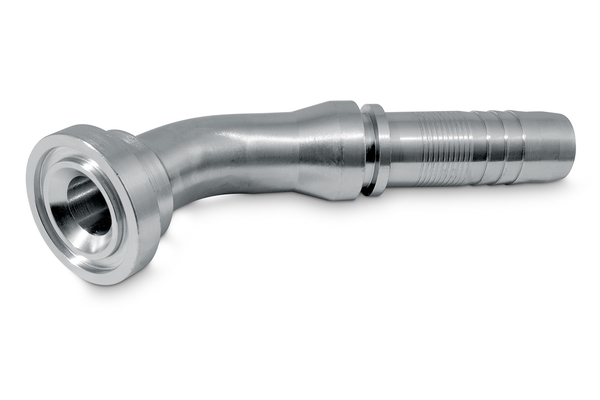

HAN12SFH6-45S12
SFS 6.000 45° PSI SFH 6 - 45°

Product info

• Technical data

  DN:	19
  Size:	12
  Inch:	3/4
  Thread + standard:	Flange head SAE J518 (ISO 6162) high pressure series 6.000 PSI
  Flange size D2:	3/4
  X [mm]:	62,8
  L1 [mm]:	130,0
  H [mm]:	30,0
  L [mm]:	130,0
  D2 [mm]:	41,3
  Connection name Indunorm:	SFH 6 - 45°
  Connection type:	SFS 6.000 PSI 45°
  Construction form:	45°
  Material:	Free cutting sT-l
  Material:	Free cutting sT-l
  Surface:	Cr3
  Type of fittings:	Multi spiral program HAN fittings (no skive)
