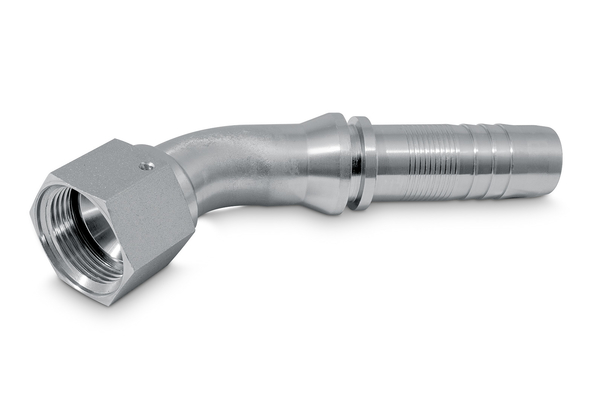

HAN21J45S16
DKJ JF

Product info

• Technical data

  DN:	25
  Size:	16
  Inch:	1
  Thread + standard:	JIC threaded adapter, 74 ° cone with union nut, UN/UNF thread
  Connection thread A:	1.5/16-12

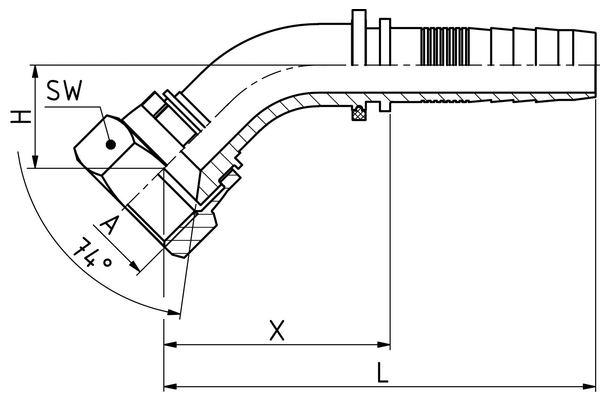

  X [mm]:	84,8
  L1 [mm]:	149,0
  H [mm]:	31,0
  SW1 [mm]:	38
  Type of nut:	With pin
  Connection name Indunorm:	JF 45°
  Connection type:	DKJ 45°
  Construction form:	45°
  Material:	Free cutting sT-l
  Material:	Free cutting sT-l
  Surface:	Cr3
  Type of fittings:	Multi spiral program HAN fittings (no skive)
