DKJ 45° (HAN)

Similar image
Similar image

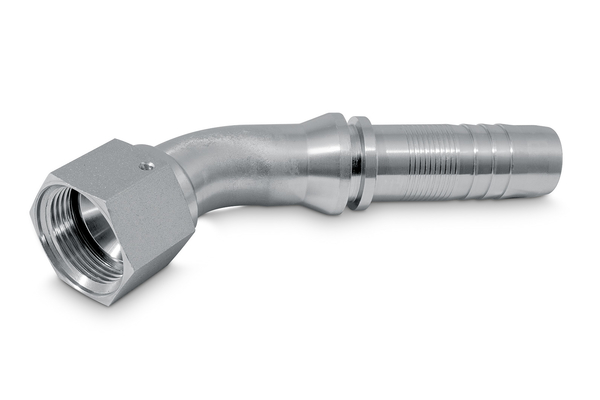

JIC threaded adapter, 74 ° cone with union nut, UN/UNF thread

To accessories

Detail

Art. No.
HAN17J45S12
%
SALE
HAN21J45S12
%
SALE
HAN21J45S16
%
SALE
HAN26J45S20
%
SALE
DN
19
19
25
32
Size
12
12
16
20
Inch
3/4
3/4
1
1.1/4
Thread + standard
JIC threaded adapter, 74 ° cone with union nut, UN/UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN/UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN/UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN/UNF thread
Connection thread A
1.1/16-12
1.5/16-12
1.5/16-12
1.5/8-12

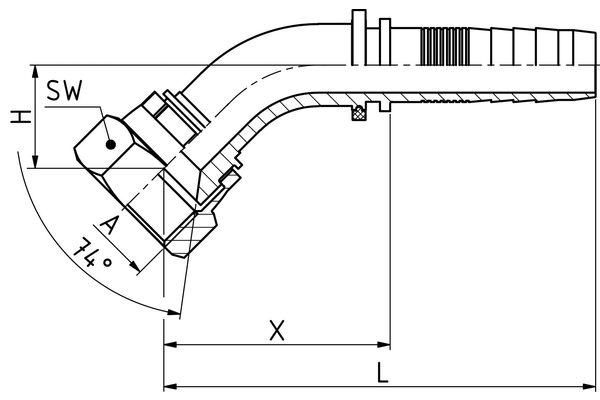

X [mm]
69,5
69,0
84,8
99,0
L1 [mm]
125,0
124,0
149,0
195,0
H [mm]
27,5
33,5
31,0
37,0
SW1 [mm]
32
38
38
50
Type of nut
With pin
With pin
With pin
With pin
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: JF 45°
    Connection type: DKJ 45°
    Construction form: 45°
    Material: Free cutting sT-l
    Material: Free cutting sT-l
    Surface: Cr3
    Type of fittings: Multi spiral program HAN fittings (no skive)

Benefit

The ISOFLEX6000 hose does not have to be peeled!
