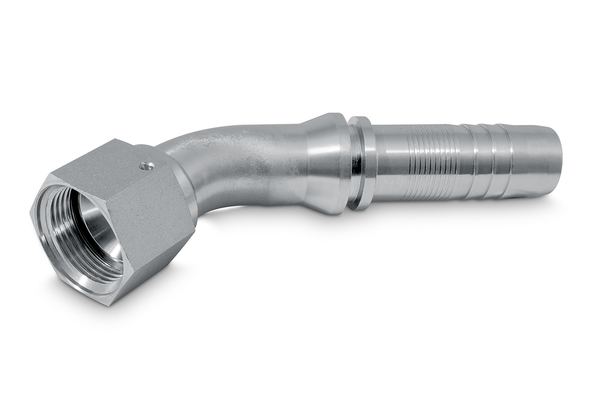

HAN26J45S20
DKJ JF

Product info

• Technical data

  DN:	32
  Size:	20
  Inch:	1.1/4
  Thread + standard:	JIC threaded adapter, 74 ° cone with union nut, UN/UNF thread
  Connection thread A:	1.5/8-12

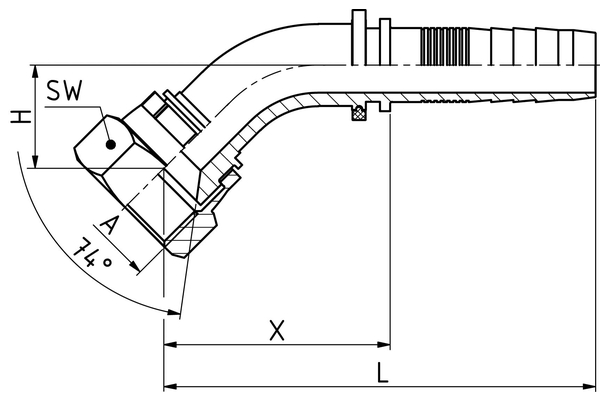

  X [mm]:	99,0
  L1 [mm]:	195,0
  H [mm]:	37,0
  SW1 [mm]:	50
  Type of nut:	With pin
  Connection name Indunorm:	JF 45°
  Connection type:	DKJ 45°
  Construction form:	45°
  Material:	Free cutting sT-l
  Material:	Free cutting sT-l
  Surface:	Cr3
  Type of fittings:	Multi spiral program HAN fittings (no skive)
