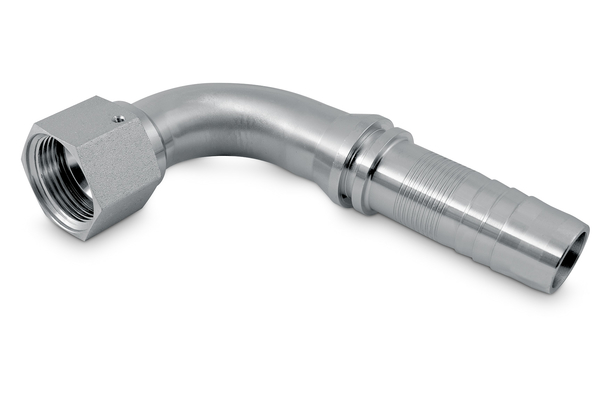

DKJ 90° (HAN)

Detail

DN
19
19
25
32
Size
12
12
16
20
Inch
3/4
3/4
1
1.1/4
Thread + standard
JIC threaded adapter, 74 ° cone with union nut, UN/UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN/UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN/UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN/UNF thread
Connection thread A
1.1/16-12
1.5/16-12
1.5/16-12
1.5/8-12
X [mm]
59,1
58,1
75,7
84,0
L1 [mm]
114,0
113,0
140,0
180,0
H [mm]
57,0
63,5
67,0
78,0
SW1 [mm]
32
38
38
50
Type of nut
With pin
With pin
With pin
With pin
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: JF 90°
    Connection type: DKJ 90°
    Construction form: 90°
    Material: Free cutting sT-l
    Material: Free cutting sT-l
    Surface: Cr3
    Type of fittings: Multi spiral program HAN fittings (no skive)

Benefit

The ISOFLEX6000 hose does not have to be peeled!
