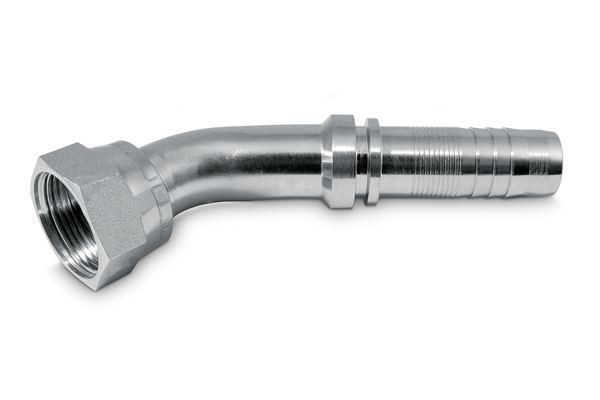

HAN16LORF45S12
ORFS sealing form 45° with union nut LORF

Product info

• Technical data

  DN:	19
  Size:	12
  Inch:	3/4
  Thread + standard:	UN/UNF female thread, flat sealing
  Connection thread A:	1.7/16-12
  X [mm]:	31,2
  L1 [mm]:	136,0
  H [mm]:	28,0
  L [mm]:	136,0
  SW1 [mm]:	41
  Type of nut:	Crimp
  Connection name Indunorm:	LORF 45°
  Connection type:	ORFS sealing form 45° with union nut
  Construction form:	45°
  Material:	Free cutting sT-l
  Material:	Free cutting sT-l
  Surface:	Cr3
  Type of fittings:	Multi spiral program HAN fittings (no skive)
