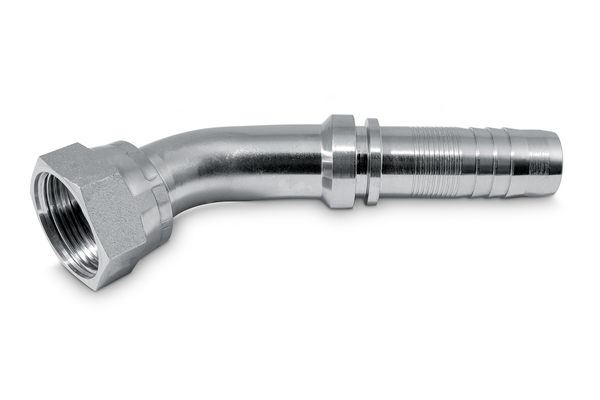

ORFS 45° with swivel nut (HAN)

Similar image

High pressure hose fittings

To accessories

Detail

Art. No.
HAN12LORF45S12
%
SALE
HAN16LORF45S12
%
SALE
HAN16LORF45S16
%
SALE
HAN20LORF45S20
%
SALE
DN
19
19
25
32
Size
12
12
16
20
Inch
3/4
3/4
1
1.1/4
Thread + standard
UN/UNF female thread, flat sealing
UN/UNF female thread, flat sealing
UN/UNF female thread, flat sealing
UN/UNF female thread, flat sealing
Connection thread A
1.3/16-12
1.7/16-12
1.7/16-12
1.11/16-12
X [mm]
32,5
31,2
94,0
110,0
L1 [mm]
136,0
136,0
158,0
205,0
H [mm]
26,0
28,0
28,0
36,5
L [mm]
136,0
136,0
158,0
SW1 [mm]
36
41
41
50
Type of nut
Crimp
Crimp
Crimp
Crimp
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: LORF 45°
    Connection type: ORFS sealing form 45° with union nut
    Construction form: 45°
    Material: Free cutting sT-l
    Material: Free cutting sT-l
    Surface: Cr3
    Type of fittings: Multi spiral program HAN fittings (no skive)

Benefit

The ISOFLEX6000 hose does not have to be peeled!
