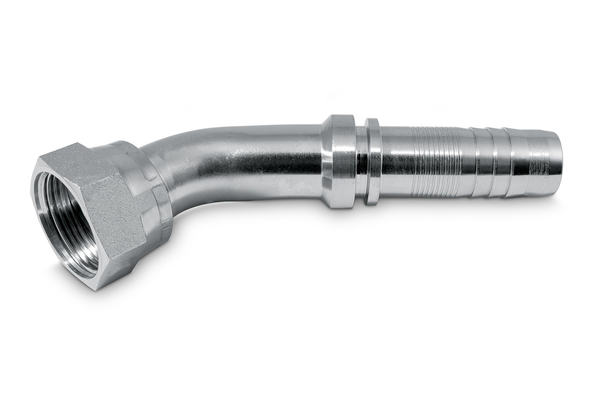

HAN20LORF45S20
ORFS sealing form 45° with union nut LORF

Product info

• Technical data

  DN:	32
  Size:	20
  Inch:	1.1/4
  Thread + standard:	UN/UNF female thread, flat sealing
  Connection thread A:	1.11/16-12
  X [mm]:	110,0
  L1 [mm]:	205,0
  H [mm]:	36,5
  SW1 [mm]:	50
  Type of nut:	Crimp
  Connection name Indunorm:	LORF 45°
  Connection type:	ORFS sealing form 45° with union nut
  Construction form:	45°
  Material:	Free cutting sT-l
  Material:	Free cutting sT-l
  Surface:	Cr3
  Type of fittings:	Multi spiral program HAN fittings (no skive)
