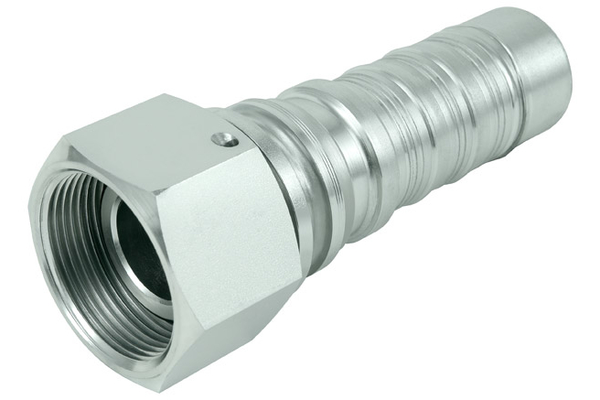

HI32BOF32
DKOR BOF

Product info

• Technical data

  DN:	51
  Size:	32
  Inch:	2
  Thread + standard:	BSP sealing head, 60 ° cone with O-ring and union nut, BSP thread
  Connection thread A:	G 2"

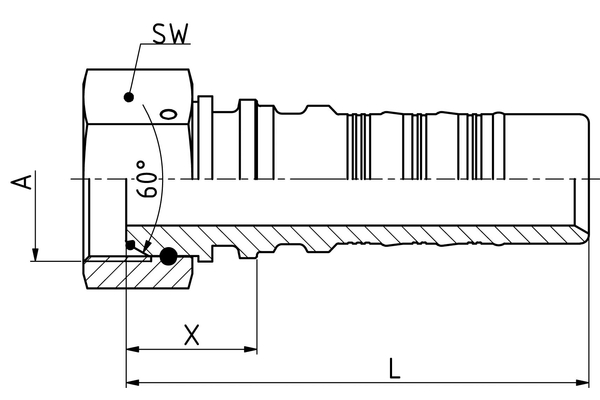

  X [mm]:	43,8
  L1 [mm]:	154,9

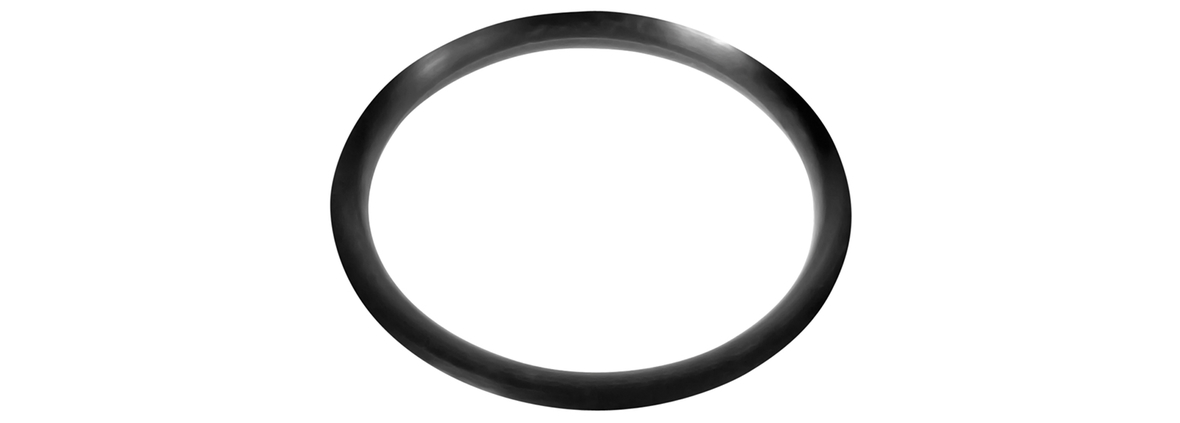

  Outer diameter O-ring [mm]:	47,37
  Height O-ring [mm]:	1,78
  SW1 [mm]:	70
  Connection name Indunorm:	BOF
  Connection type:	DKOR
  Material:	steel
  Material O-Ring:	NBR
  Surface:	zinc plated, chrom 6-free
  Type of fittings:	Multi spiral series HI
