HI-S24SFH45S24
SFL 3.000 PSI 45° SFH 45°

Product info

• Technical data

  DN:	38
  Size:	24
  Inch:	1.1/2
  Thread + standard:	Flange head SAE J518 (ISO 6162) standard series 3000 PSI
  Flange size D2:	1.1/2"

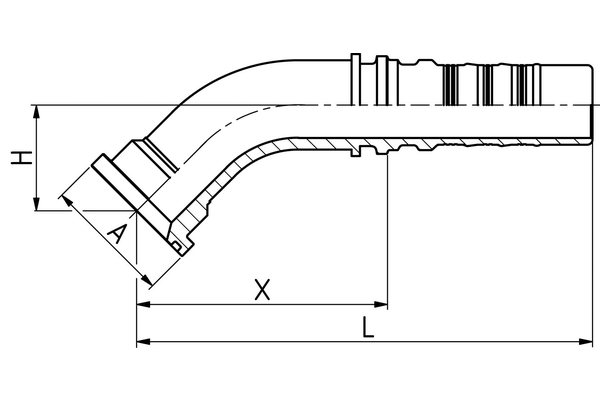

  X [mm]:	113,0
  L1 [mm]:	209,4
  H [mm]:	40,3
  Connection name Indunorm:	SFH 45°
  Connection type:	SFL 3000 PSI 45°
  Material:	steel
  Surface:	zinc plated, chrom 6-free
  Type of fittings:	Multi spiral series HI
