HI-S24SFH90S24
SFL 3.000 PSI 90° SFH 90°

Product info

• Technical data

  DN:	38
  Size:	24
  Inch:	1.1/2
  Thread + standard:	Flange Head SAE J518 (ISO 6162) Standard series 3000 PSI
  Flange size D2:	1.1/2"

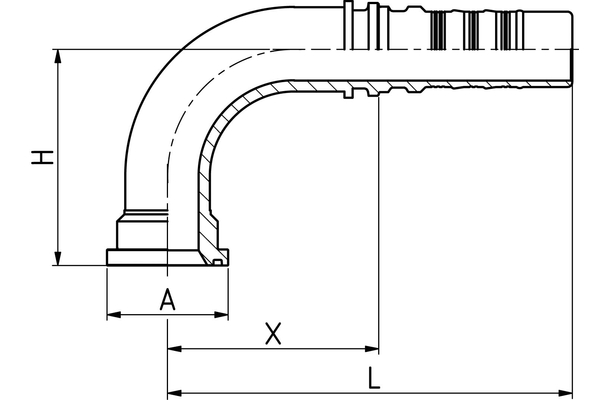

  X [mm]:	115,0
  L1 [mm]:	210,0
  H [mm]:	96,0
  Connection name Indunorm:	SFH 90°
  Connection type:	SFL 3000 PSI 90°
  Material:	steel
  Surface:	zinc plated, chrom 6-free
  Type of fittings:	Multi spiral series HI
