HI-S20SFH6-90S24
SFS 6.000 90° PSI SFH 6 - 90°

Product info

• Technical data

  DN:	38
  Size:	24
  Inch:	1.1/2
  Thread + standard:	Flange head SAE J518 (ISO 6162) high pressure series 6000 PSI
  Flange size D2:	1.1/4"

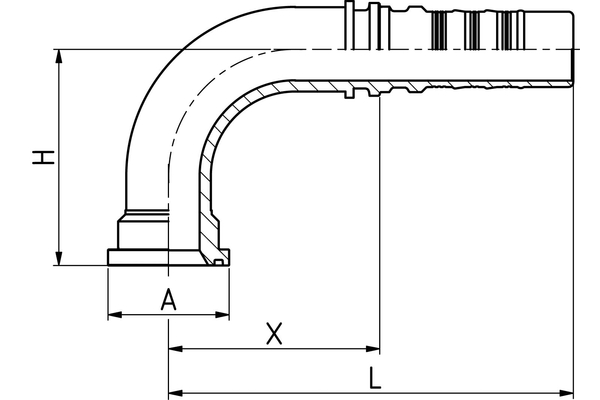

  X [mm]:	115,0
  L1 [mm]:	213,0
  H [mm]:	95,0
  Connection name Indunorm:	SFH 6 - 90°
  Connection type:	SFS 6000 PSI 90°
  Material:	steel
  Surface:	zinc plated, chrom 6-free
  Type of fittings:	Multi spiral series HI
