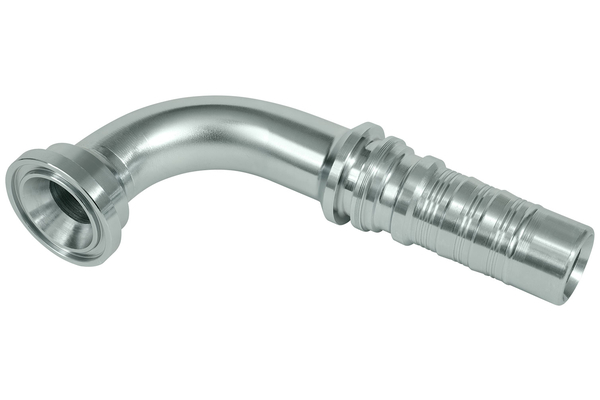

HI-S32SFH6-90S32
SFS 6.000 90° PSI SFH 6 - 90°

Product info

• Technical data

  DN:	51
  Size:	32
  Inch:	2
  Thread + standard:	Flange head SAE J518 (ISO 6162) high pressure series 6000 PSI
  Flange size D2:	2"

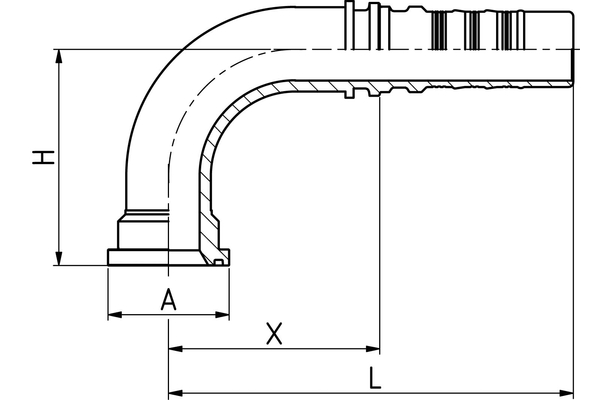

  X [mm]:	138,6
  L1 [mm]:	249,7
  H [mm]:	108,0
  Connection name Indunorm:	SFH 6 - 90°
  Connection type:	SFS 6000 PSI 90°
  Material:	steel
  Surface:	zinc plated, chrom 6-free
  Type of fittings:	Multi spiral series HI
