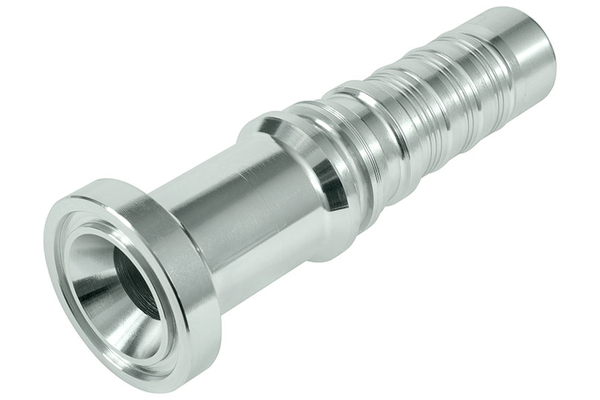

HI24SFH9-24
SFS CAT SFH 9

Product info

• Technical data

  DN:	38
  Size:	24
  Inch:	1.1/2
  Thread + standard:	Flange head (CAT) high pressure series
  Flange size D2:	1.1/2"

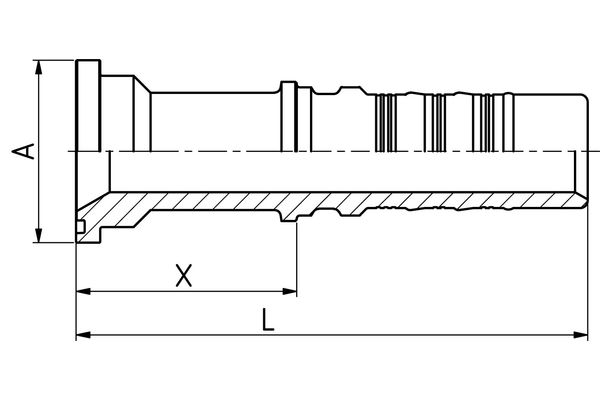

  X [mm]:	90,1
  L1 [mm]:	186,4
  Connection name Indunorm:	SFH9
  Connection type:	SFS CAT
  Material:	Free cutting steel
  Surface:	zinc plated, chrom 6-free
  Type of fittings:	Multi spiral series HI
