Art. No.: HNS17JF12DH
List number: 03251140

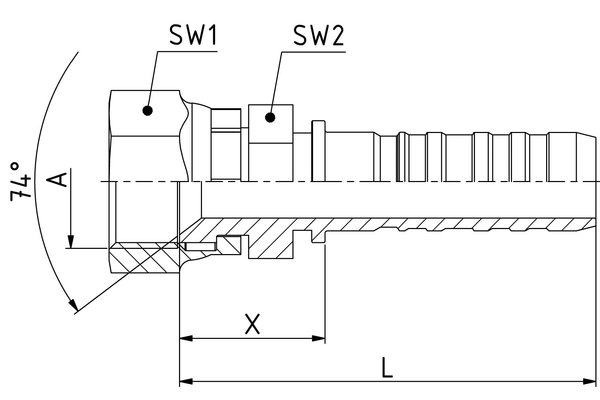

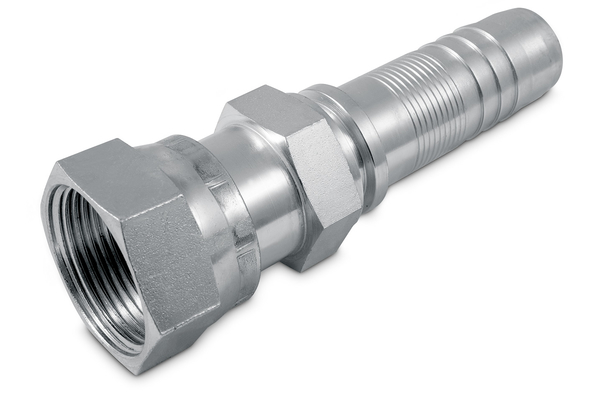

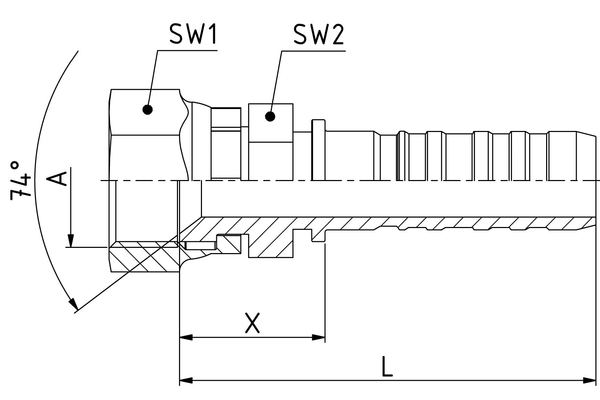

JIC threaded adapter, 74 ° cone with union nut, UN/UNF thread
| DN: | 19 |
| Size: | 12 |
| Inch: | 3/4" |
| Connection thread A: | 1.1/16"-12 |
| X [mm]: | 30,1 |
| SW1 [mm]: | 27 |
| SW2 [mm]: | 32 |
| Connection name Indunorm: | JF |
| Connection type: | DKJ |
| Construction form: | 0° |
| Material: | Free cutting sT-l |
| Material: | Free cutting sT-l |
| Type of fittings: | Multi spiral program HNS fittings (no skive) |
Reserve technical changes.
