DKJ DOPPELHEXAGON (HNS)

Similar image
Similar image

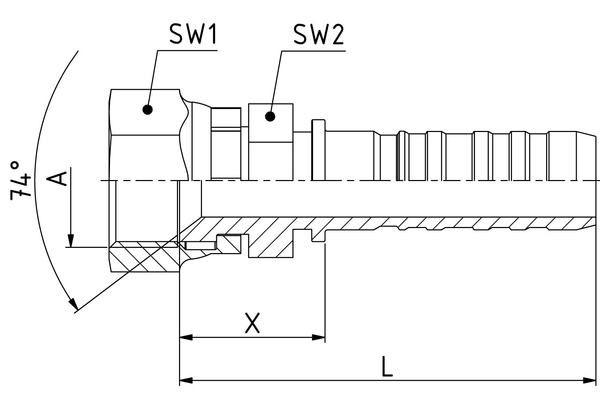

JIC threaded adapter, 74 ° cone with union nut, UN/UNF thread

To accessories

Detail

Art. No.
HNS14JF10DH
%
SALE
HNS17JF12DH
%
SALE
HNS21JF16DH
%
SALE
HNS26JF16DH
%
SALE
HNS26JF20DH
%
SALE
HNS30JF24DH
%
SALE
HNS40JF32DH
%
SALE
DN
16
19
25
25
31
38
51
Size
10
12
16
16
20
24
32
Inch
5/8"
3/4"
1"
1"
1.1/4"
1.1/2"
2"
Connection thread A
7/8"-14
1.1/16"-12
1.5/16"-12
1.5/8"-12
1.5/8"-12
1.7/8"-12
2.1/2"-12
X [mm]
28,3
30,1
38,6
41,2
43,0
48,4
59,2
SW1 [mm]
24
27
36
41
46
50
65
SW2 [mm]
27
32
38
50
50
55
70
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: JF
    Connection type: DKJ
    Construction form: 0°
    Material: Free cutting sT-l
    Material: Free cutting sT-l
    Type of fittings: Multi spiral program HNS fittings (no skive)

Benefit

The ISOFLEX6000 hose does not have to be peeled!
