Art. No.: HNS26JF16DH
List number: 03251160

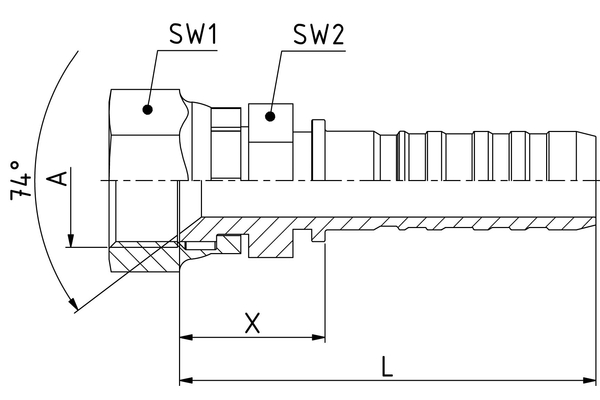

JIC threaded adapter, 74 ° cone with union nut, UN/UNF thread
| DN: | 25 |
| Size: | 16 |
| Inch: | 1" |
| Connection thread A: | 1.5/8"-12 |
| X [mm]: | 41,2 |
| SW1 [mm]: | 41 |
| SW2 [mm]: | 50 |
| Connection name Indunorm: | JF |
| Connection type: | DKJ |
| Construction form: | 0° |
| Material: | Free cutting sT-l |
| Material: | Free cutting sT-l |
| Type of fittings: | Multi spiral program HNS fittings (no skive) |
Reserve technical changes.
