DKOR 90° (HV)

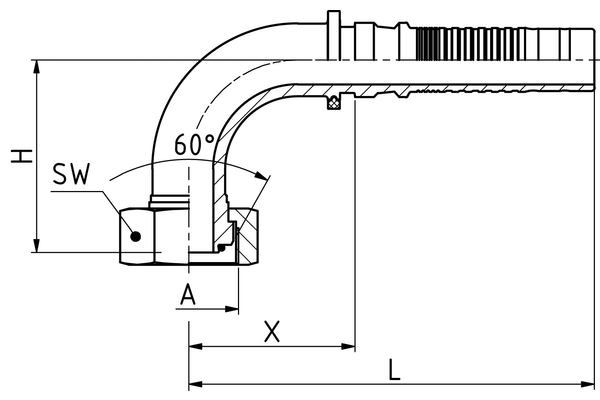

Similar image

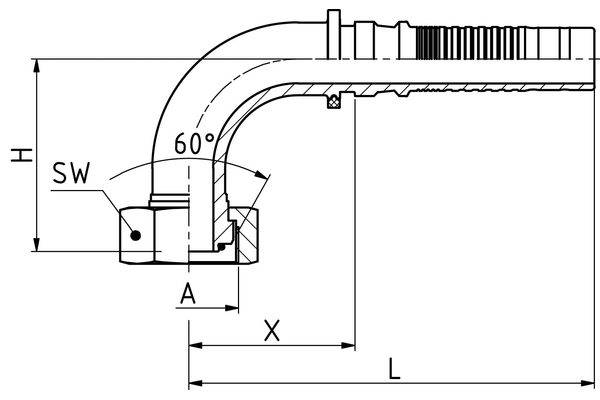

Similar image

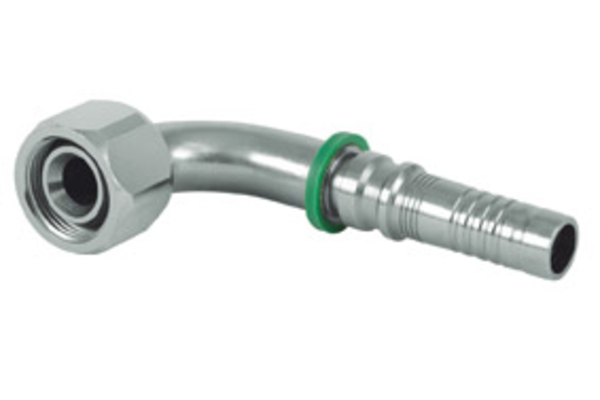

BSP sealing head, 60 ° cone with o-ring and union nut, BSP thread

To accessories

Detail

Art. No.
HV-S12BOF90S12
%
SALE
HV-S16BOF90S16
%
SALE
HV-S20BOF90S20
%
SALE
DN
19
25
31
Size
12
16
20
Inch
3/4
1
1.1/4
Thread + standard
BSP sealing head, 60 ° cone with o-ring and union nut, BSP thread
BSP sealing head, 60 ° cone with o-ring and union nut, BSP thread
BSP sealing head, 60 ° cone with o-ring and union nut, BSP thread
Connection thread A
G 3/4"
G 1"
G 1.1/4"
X [mm]
52,5
75,5
92,0
L1 [mm]
125,0
155,0
170,0
H [mm]
63,5
85,0
96,5
Outer diameter O-ring [mm]
17,1
22,1
29,1
Height O-ring [mm]
1,6
1,6
1,6
SW1 [mm]
32
41
50
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: BOF 90°
    Connection type: DKOR 90°
    Construction form: 90°
    Material: Free cutting steel, O-Ring: NBR
    Material O-Ring: NBR
    Resistance against red rust [h]: 144
    Resistance against white rust [h]: 72
    Surface: ZnNi
    Type of fittings: Multispiral series HV

Practical tip

Using the nipple assembly tool NEV6-50H-2 together with accessory NEV-WFB-2 elbow fittings can be installed with little effort.
