Product info
-
Technical data

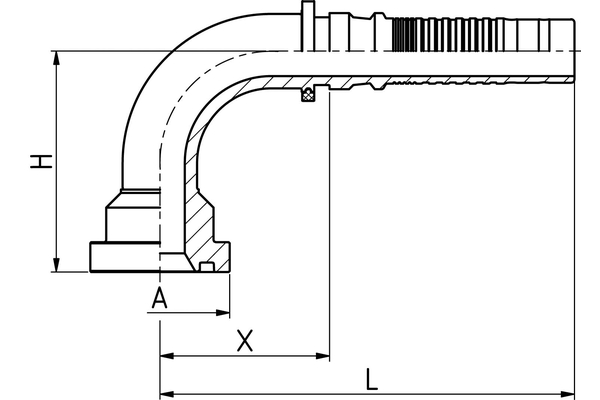

DN: 19 Size: 12 Inch: 3/4" Thread + standard: Flange head SAE J518 (ISO 6162) high pressure series 3000 PSI Flange size D2: 1" X [mm]: 52 L1 [mm]: 124,5 H [mm]: 79 Connection name Indunorm: SFL 3.000 PSI 90° special length Connection type: SFL 3000 PSI 90° Construction form: 90° Material: Free cutting steel Type of fittings: Multispiral series HV degree: 90
