HV12SFH6-12,5S12
SFS 6.000 PSI special elbows

Product info

• Technical data

  DN:	19
  Size:	12
  Inch:	3/4
  Thread + standard:	Flange head SAE J518 (ISO 6162) high pressure series 6000 PSI
  Flange size D2:	3/4"

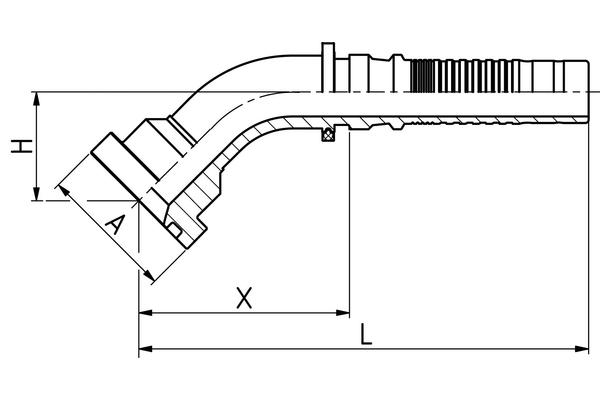

  X [mm]:	66,9
  L1 [mm]:	139,4
  H [mm]:	7,3
  D2 [mm]:	41,3
  Connection name Indunorm:	SFS 6.000 PSI special elbows
  Connection type:	SFS 6000 PSI
  Material:	Free cutting steel
  Resistance against red rust [h]:	720
  Resistance against white rust [h]:	120
  Surface:	ZnNi
  Type of fittings:	Multispiral series HV
  degree:	12,5
