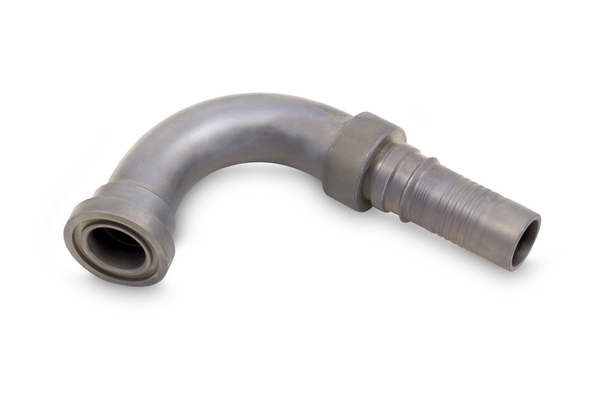

HV20SFH6-110S20
SFS 6.000 PSI special elbows

Product info

• Technical data

  DN:	31
  Size:	20
  Inch:	1.1/4
  Thread + standard:	Flange head SAE J518 (ISO 6162) high pressure series 6000 PSI
  Flange size D2:	1.1/4"
  X [mm]:	81,0
  L1 [mm]:	159,0
  H [mm]:	117,0
  Connection name Indunorm:	SFS 6.000 PSI special elbows
  Connection type:	SFS 6000 PSI
  Material:	Free cutting steel
  Resistance against red rust [h]:	720
  Resistance against white rust [h]:	120
  Surface:	ZnNi
  Type of fittings:	Multispiral series HV
  degree:	110
