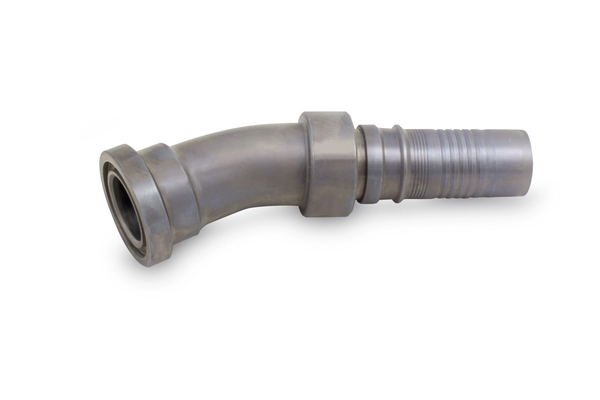

Art. No.: HV24SFH6-22,5S20
List number: 04855600
Flange head SAE J518 (ISO 6162) high pressure series 6.000 PSI
| DN: | 31 |
| Size: | 20 |
| Inch: | 1.1/4" |
| Thread + standard: | Flange head SAE J518 (ISO 6162) high pressure series 6000 PSI |
| Flange size D2: | 1.1/2" |
| X [mm]: | 121,0 |
| L1 [mm]: | 199,0 |
| H [mm]: | 21,3 |
| Connection name Indunorm: | SFS 6.000 PSI special elbows |
| Connection type: | SFS 6000 PSI |
| Material: | Free cutting steel |
| Type of fittings: | Multispiral series HV |
| degree: | 22,5 |
Reserve technical changes.
