Art. No.: HV24SFH6-16
List number: 046984400

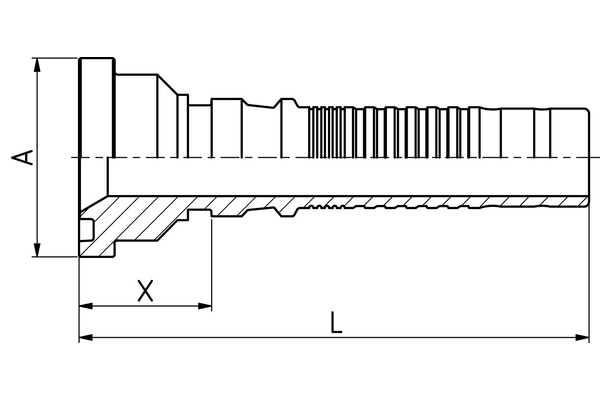

Flange head SAE J518 (ISO 6162) high pressure series 6.000 PSI
| DN: | 25 |
| Size: | 16 |
| Inch: | 1 |
| Flange size D2: | 1.1/2" |
| X [mm]: | 67,1 |
| L1 [mm]: | 151,1 |
| D2 [mm]: | 60,3 |
| L [mm]: | 151,1 |
| Connection name Indunorm: | SFH 6 |
| Connection type: | SFS 6000 PSI |
| Construction form: | 0° |
| Material: | Free cutting steel |
| Resistance against red rust [h]: | 720 |
| Resistance against white rust [h]: | 120 |
| Type of fittings: | Multispiral series HV |
Reserve technical changes.
